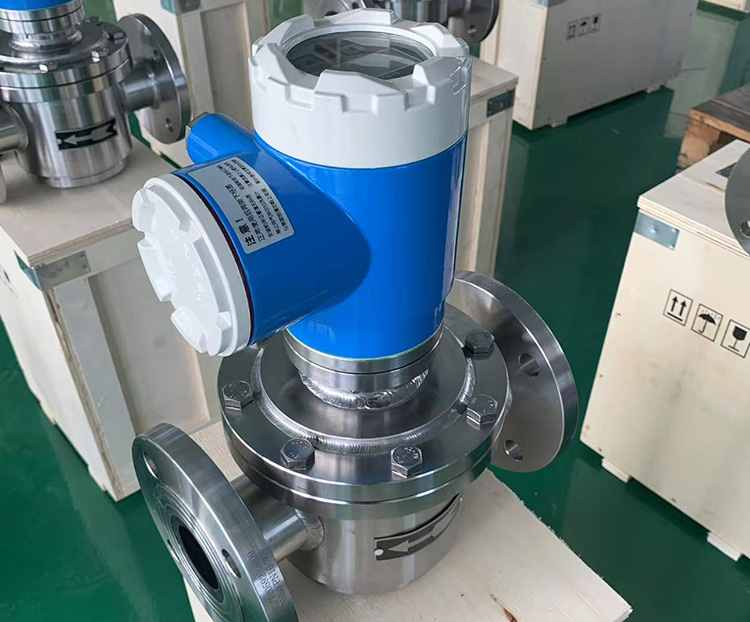

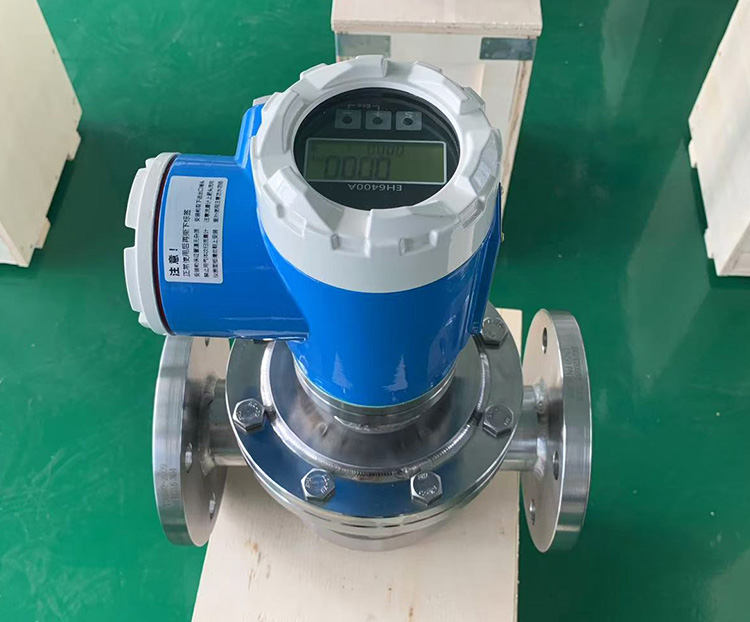

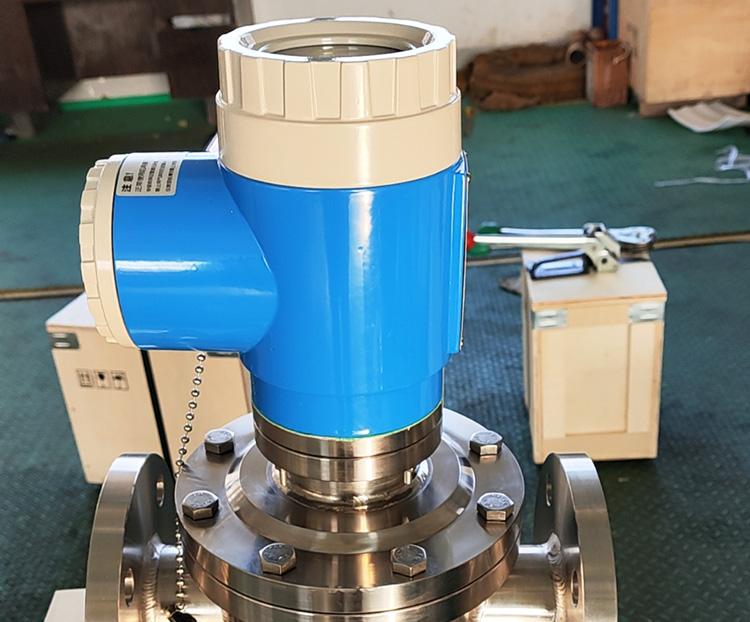

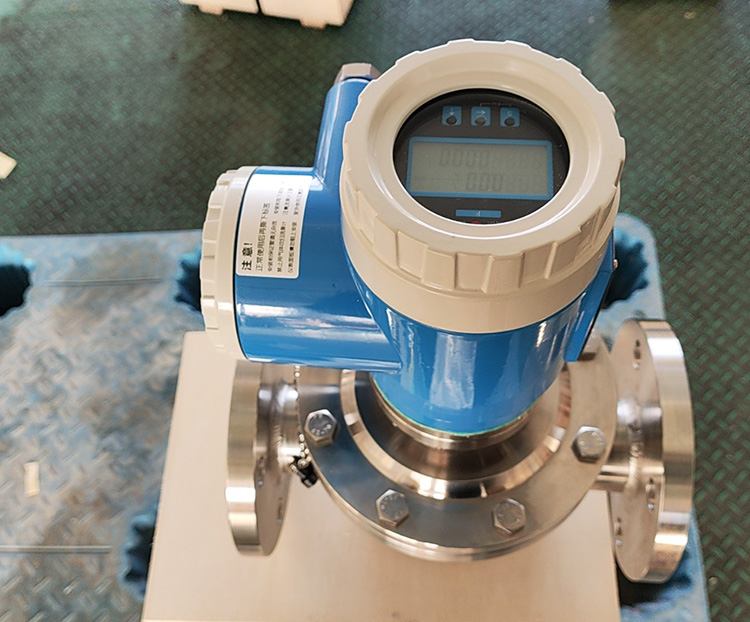

Oval gear flowmeter is a volumetric meter for continuous or intermittent measurement and control of liquid flow in a pipeline.
● Large range, high accuracy, small pressure loss,
● Strong viscosity adaptability, measurement of high temperature and high viscosity liquid
| TR/M |
LC—A Iron casting type |
LC—B Stainless steel type |
LC—E Cast steel type |
|
|
NominalpressureMPa |
1.6 |
1.6, 2.5, 4.0, 6.3 |
1.6, 2.5, 4.0, 6.3 |
|
|
Temperature range ℃ |
Conventional pointer type: -20~+80；High-temperature pointer type: -20~+200； Conventional LCD type: -20~+60；High-temperature LCD type: -20~+150； |
|||
|
Precision level |
0.5% |
|||
|
Caliber (mm) |
Viscosity: 0.6—2mPa.s |
Viscosity: 2—200mPa.s |
||
|
10 |
0.2-0.4 m3/h |
0.08—0.4 m3/h |
||
|
15 |
0.6-1.5 m3/h |
0.3—1.5 m3/h |
||
|
20 |
0.8—3 m3/h |
0.6—3 m3/h |
||
|
25 |
1.2—6 m3/h |
0.8—6 m3/h |
||
|
40 |
5—15 m3/h |
3—15 m3/h |
||
|
50 |
6—24 m3/h |
4—24 m3/h |
||
|
65 |
10—40 m3/h |
8—40 m3/h |
||
|
80 (light type) |
10—40 m3/h |
8—40 m3/h |
||
|
80II (heavy type) |
15—60 m3/h |
10—60 m3/h |
||
|
80 (heavy type) |
15—60 m3/h |
10—60 m3/h |
||
|
100 |
30—100 m3/h |
15—100 m3/h |
||
|
150 |
45—190 m3/h |
34—190 m3/h |
||
|
200 |
68—340 m3/h |
56—340 m3/h |
||
