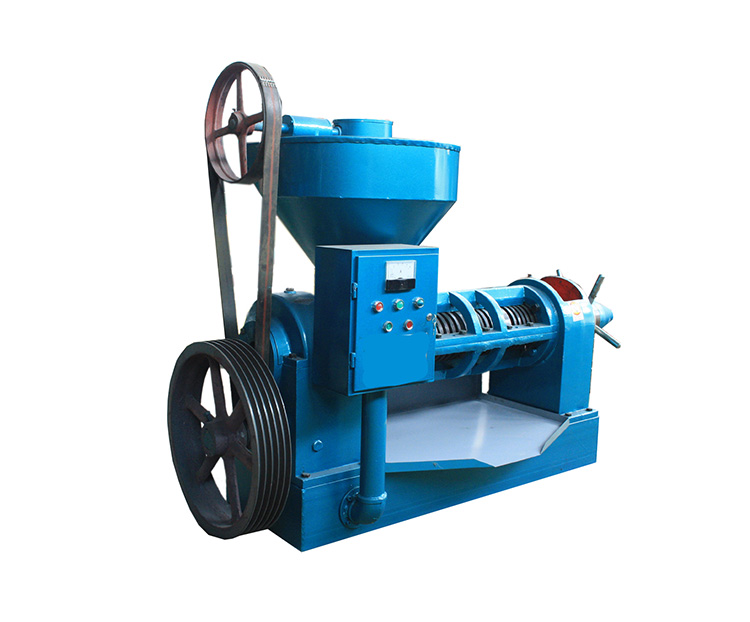

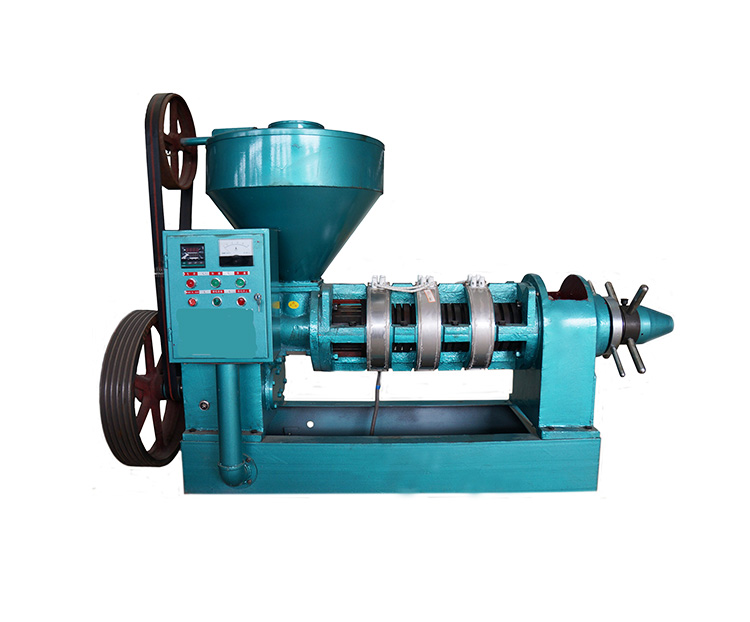

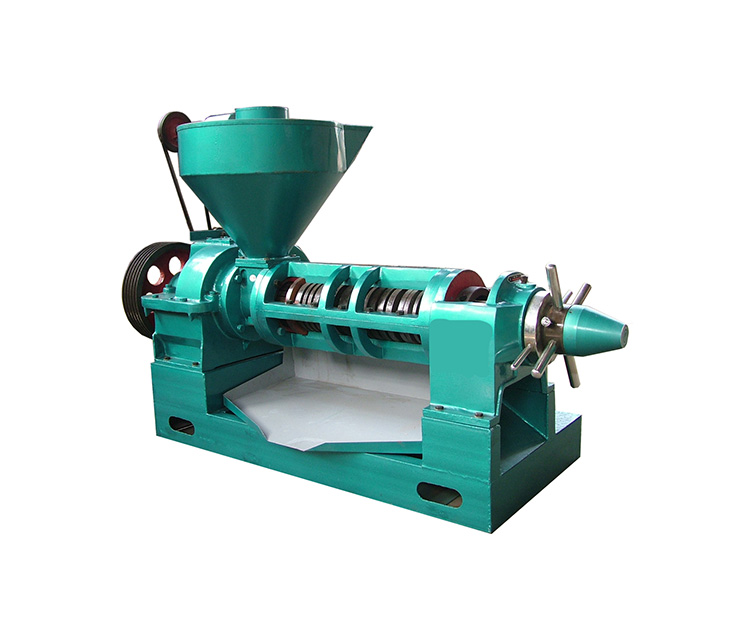

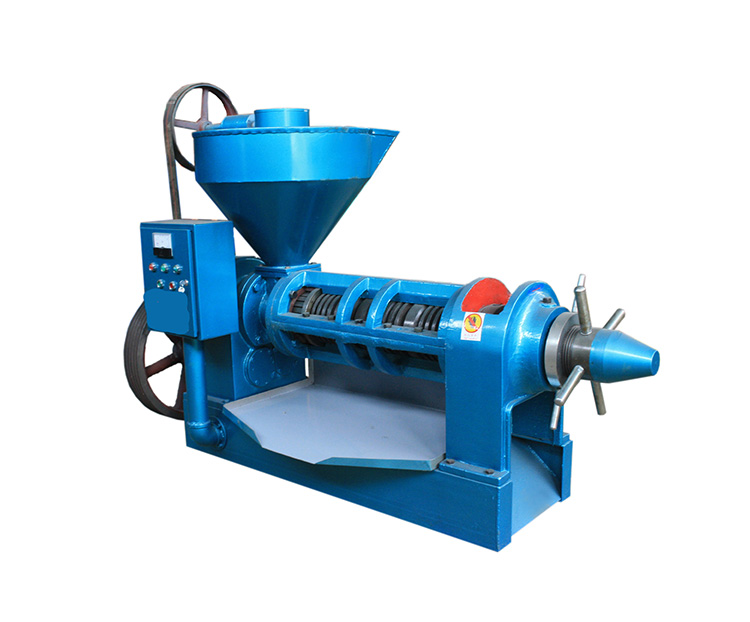

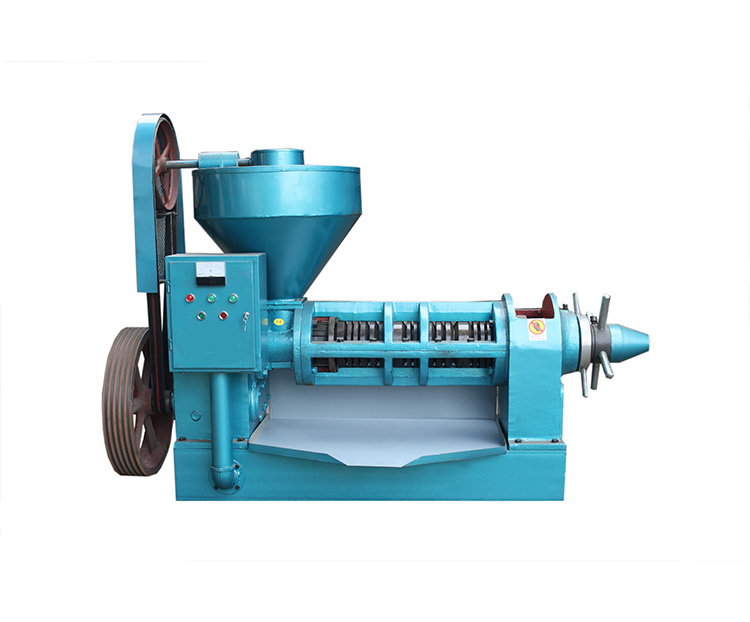

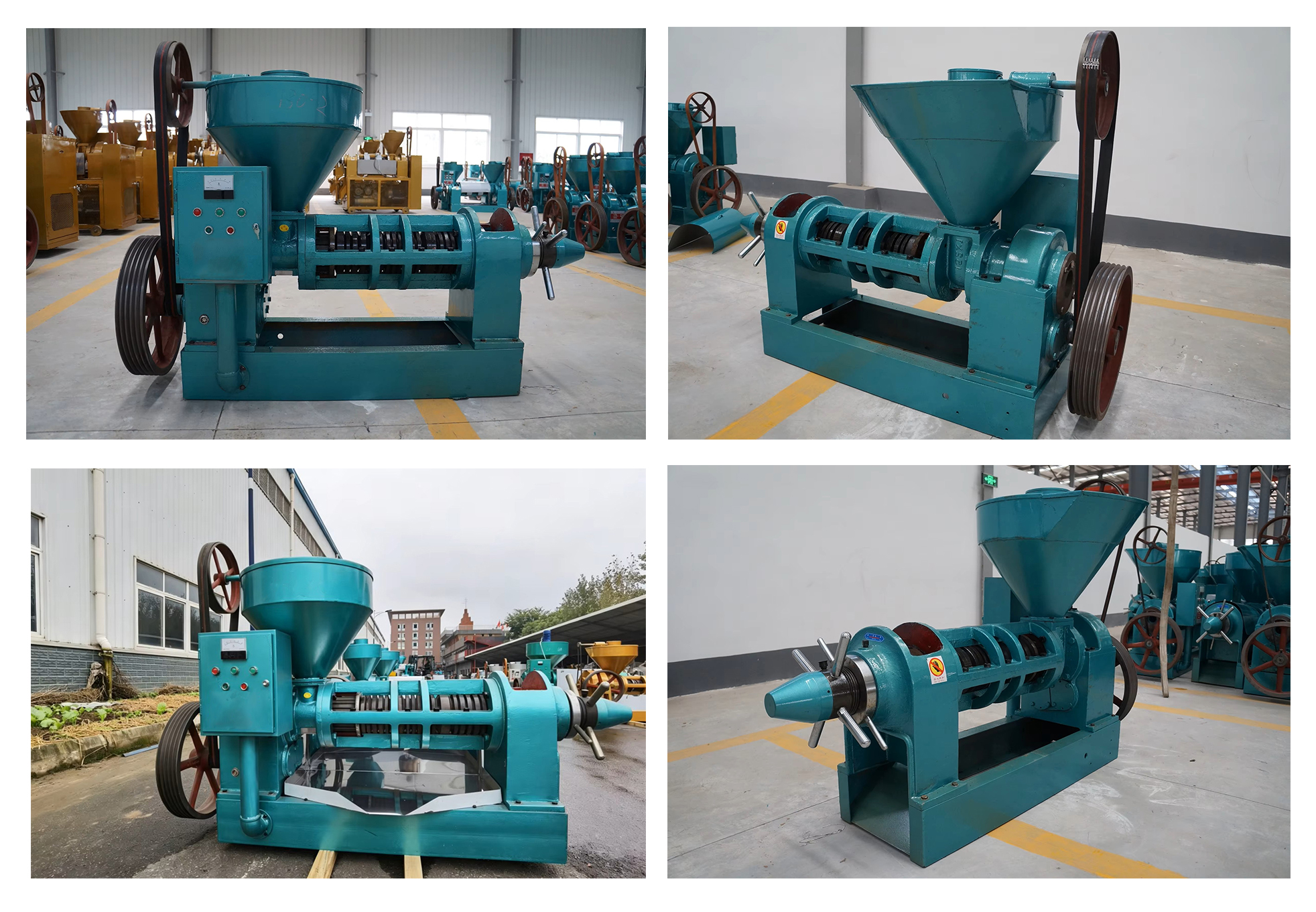

Our series CZA130 spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
1.Powerful core performance with high and stable oil yield.
2. Adopting precision screw pressing with low-speed physical cold-pressing technology, it prevents nutrient loss caused by high temperatures and fully preserves the original flavor and active ingredients of crude oil.
3. Robust core configuration with pure-copper motor: delivers strong power and stable operation. It features low overheating risk during continuous operation, longer service life, more thorough extraction, and industry-leading oil yield.
4. Exquisite craftsmanship and reliable quality.
5. Thickened steel body and high-precision accessories ensure stable operation, low noise, pressure resistance and wear resistance. It can perfectly process various oil-bearing crops such as peanuts, rapeseeds, sesame seeds and walnuts, serving as a durable and efficient production equipment.
6. Intelligent and human-oriented design for time-saving, labor-saving and worry-free operation.
7. Simple and intuitive operation, easy assembly and convenient cleaning. Built-in high-precision oil filtering system directly delivers clear and pure oil products.
8. Wide adaptability: adjustable parameters for different oil materials. Multi-functional to meet various pressing requirements.
|
Item |
YZYX130-8(12) |
YZYX130GX-8(12) |
|
Revolving speed of spiral axis (r/min) |
28-40 |
|
|
Transmission type |
Triangle belt Transmission |
|
|
Power required（kw） |
15（Y160L-4）or 18.5(Y18M-4) |
|
|

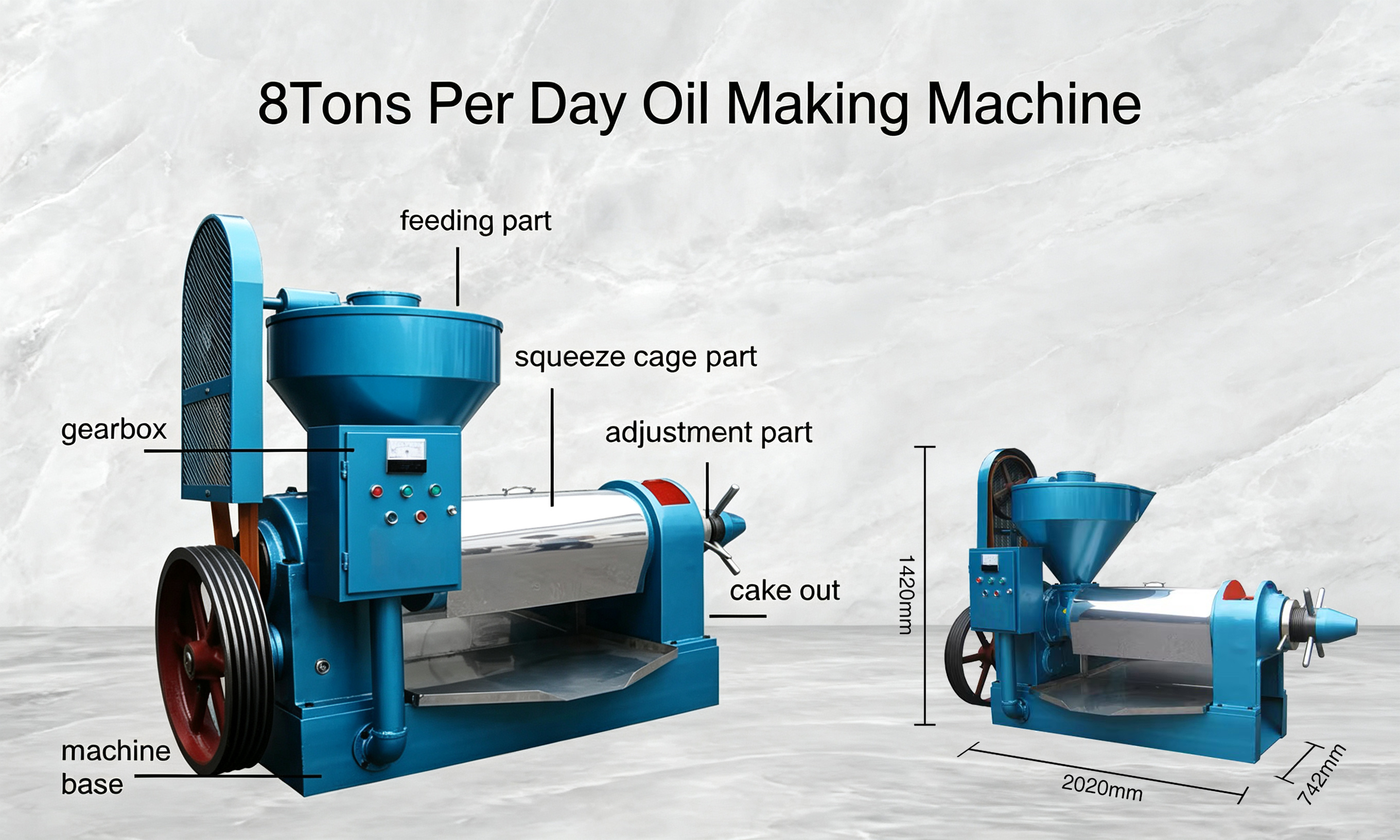

Measurement (mm) |
2020x742x1420 |
2100x820x1370 |
|
Weight (kg) |
886 |
998 |
Oil seeds
Product description and details
Below features are based on oil plants with above medium quality smoothly and continuously squeezed after good pretreatments as screening, husking, flaking and cooking, etc.
|
Oil Plants |
Processing Capacity(t/24h) |
Oil content of Dry cakes (%) |
Oil yield efficiency (%) |
Electric power consumption (kw.h/t) |
|
Rapeseed |
≥8.0 |
≤7.6 |
≥82 |
≤34 |
|
Cotton seeds |
≥8.0 |
≤6.8 |
≥77 |
≤54 |
|
Soybean |
≥7.0 |
≤6.5 |
≥67 |
≤51 |
|
Peanut |
≥8.0 |
≤6.5 |
≥92.3 |
≤34 |
① It is normal that sometimes the actual results may be a little different from those in the index because the oil plant’s type, quality and original content may be different in different areas.
② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.
