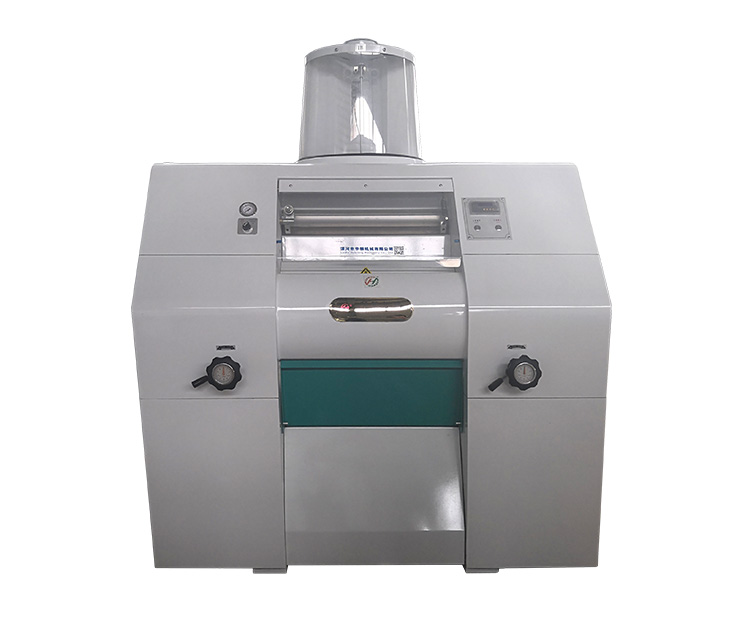

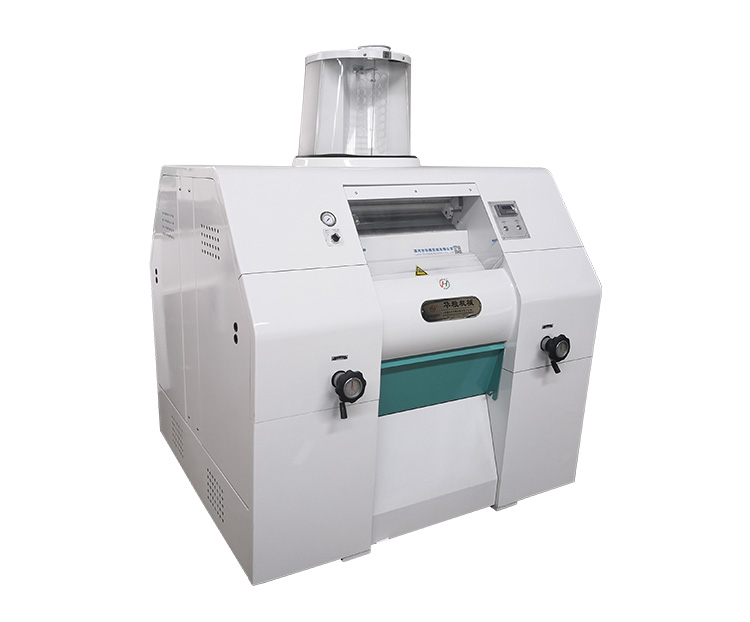

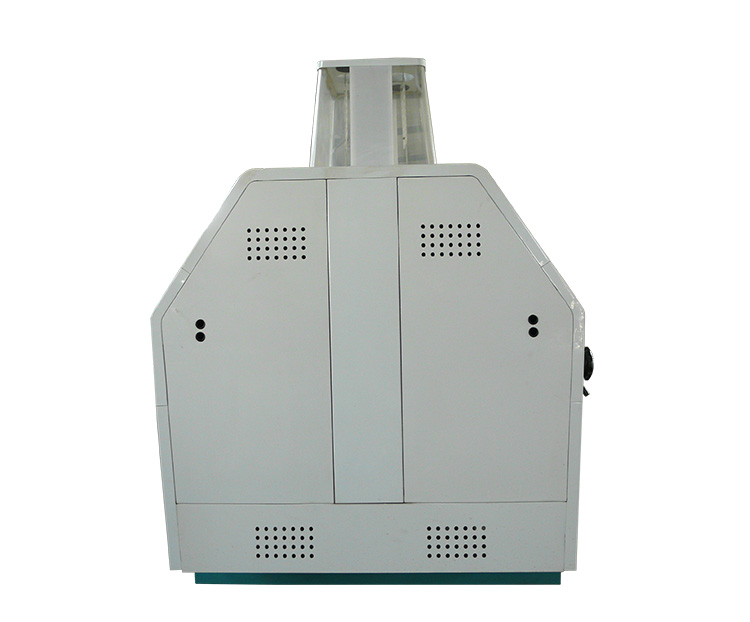

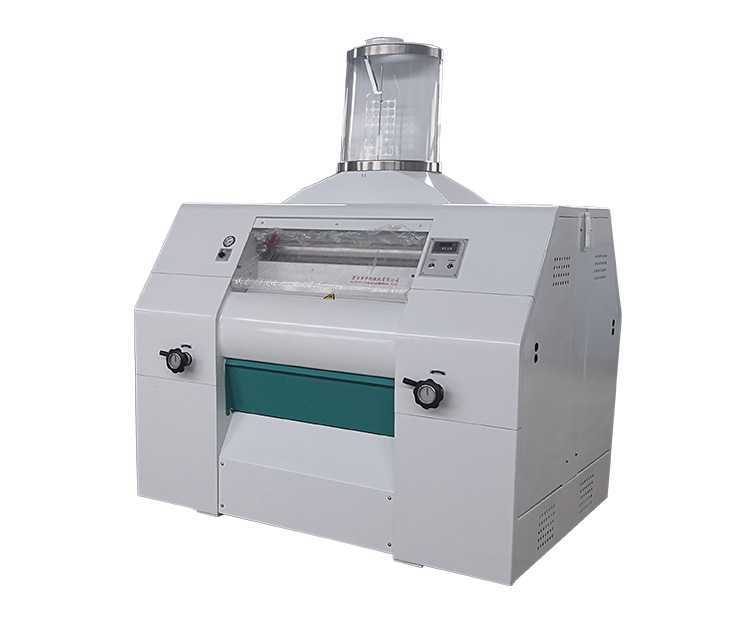

Automatic Wheat Flour Milling Machine

Roller mill is equipped with two independent grinding systems. The transmission of grinding and feeding of each pair of grinding rollers are independent, each performing its own function in the system's flour milling process.

Send Message Inquiry Now

Main Features:

● Easy flipping feed unit for convenient cleaning;

● Permanent magnet speed regulating synchronous motor is adopted for higher efficiency and better hygiene;

● Integral grinding roller unit for easy assembly, convenient operation;

● Elastic toothed wedge belt serves as the tensioning device, which can automatically compensate for the small change of the belt and improve its service life.

Technical Specification:

Model	MMR25/80	MMR25/100	MMR25/125
Roller (mm)	Φ250x800	Φ250x1000	Φ250x1250
Range of Applicable Roller (mm)	Φ230-250
Fast Roll Rotating Speed (m/s)	450-460
Fast-slow Roller Dating Speed Ratio	1.25:1 1.5:1 2:1 2.5:1
Feeding Roll Speed Ratio	1:1 1.4:1 1.5:1 1.67:1 2:1
Motor Power(kW)	37、30、22、18.5、15、11、7.5、5.5
Main Drive Wheel Diameter	Φ360
Working Air Pressure(Mpa)	0.6
Weight(kg)	2700	3200	3800
Dimension (mm)	1610x1458x1880	1810x1458x1880	2060x1458x1880
