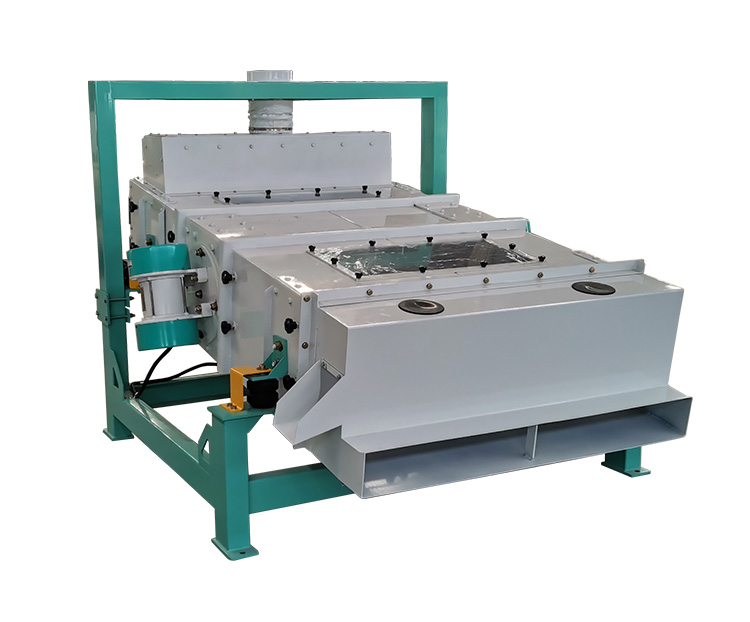

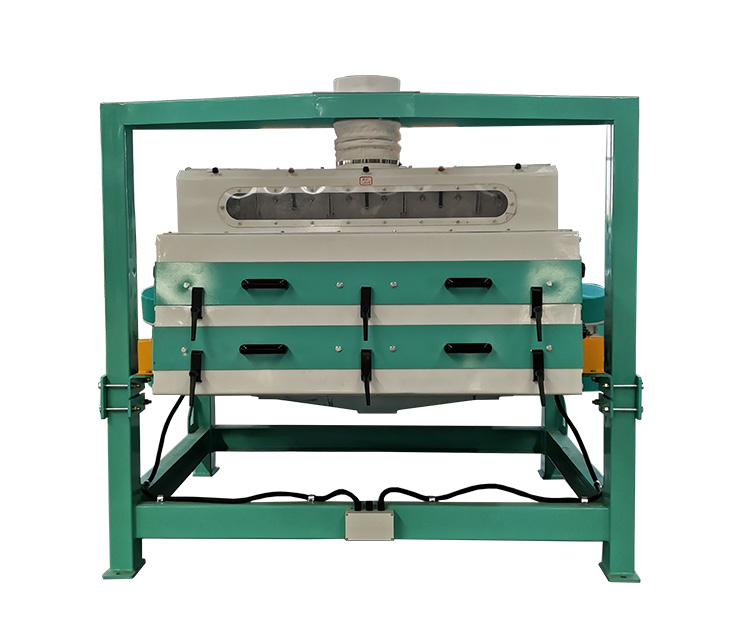

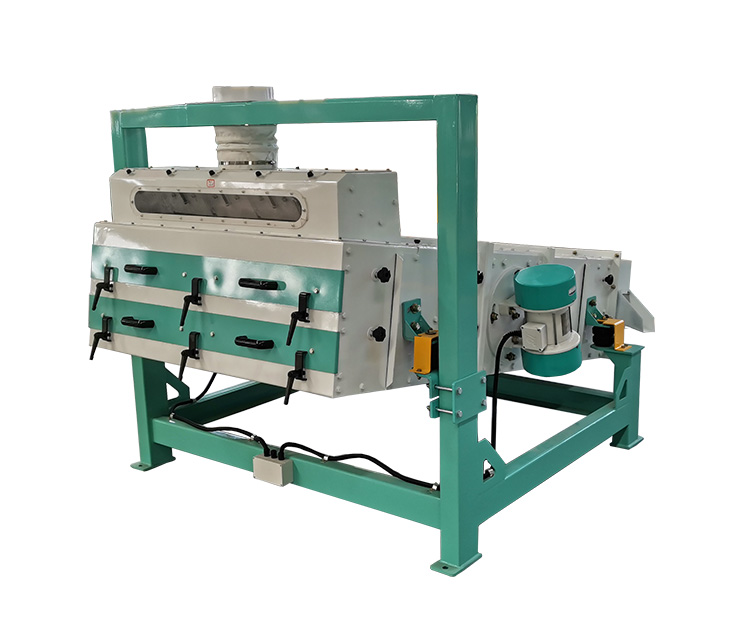

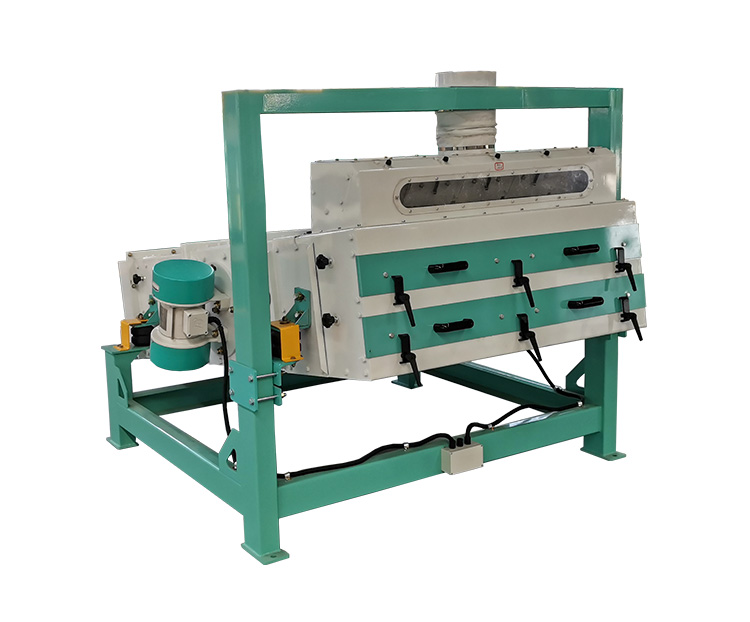

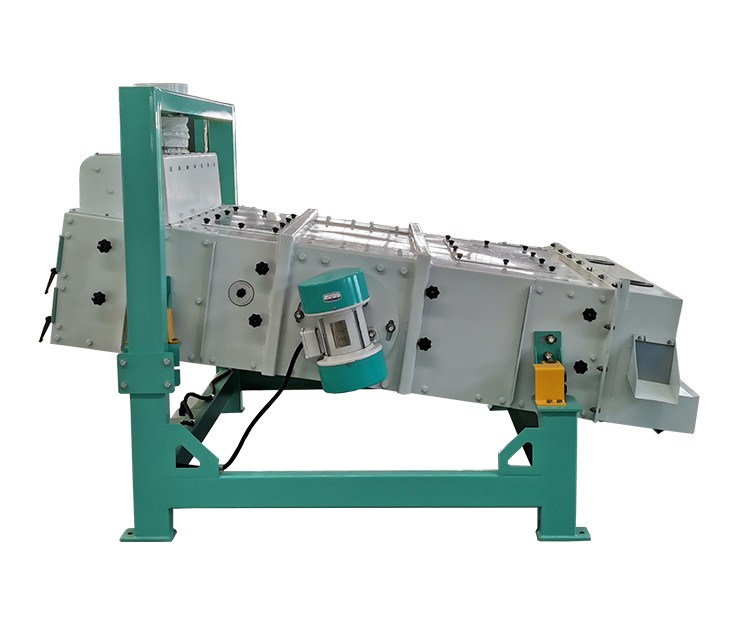

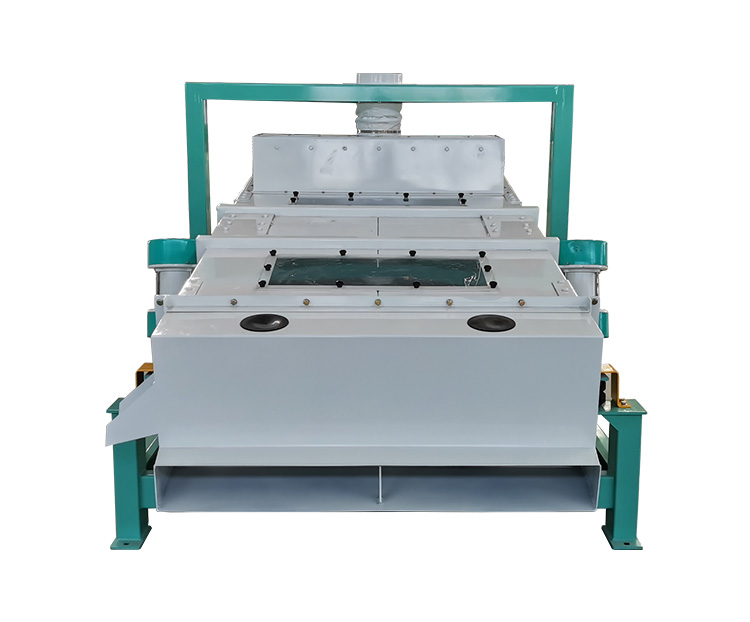

Vibrating Screen-Henan Chenzhian Machinery Equipment Co.,Ltd.

Main Features:

● Excellent separation effect for efficient grain cleaning

● Minimal maintenance requirements thanks to optimized design

● Flexible application possibilities via optional outlet aspirators.

● Sturdy design for less wear.

● Various machine combinations for flexible application.

Technical Specification:

Model	Power	Capacity(t/h)		Air Volume	Dimension	Weight
	kW	Pre-cleaning	Cleaning	m³/min	LWH(mm)	Kg
TQLZ40*80	2*0.12	3	2	22	12568701070	190
TQLZ60*100	2*0.25	12	4	32	164012101322	360
TQLZ100*100	2*0.25	20	7	52	164015501382	420
TQLZ100*150	2*0.37	30	11	80	217015501530	520
TQLZ100*200	2*0.37	40	14	90	264015501557	540
TQLZ150*150	2*0.75	45	16	100	217021801636	630
TQLZ150*200	2*0.75	60	22	135	266021801636	650
TQLZ180*200	2*1.1	70	26	160	270024801873	1000
TQLZ150*270	2*1.5	100	30	135	266021801636	1200
TQLZ180*270	2*1.5	120	35	160	266024801636	1500
