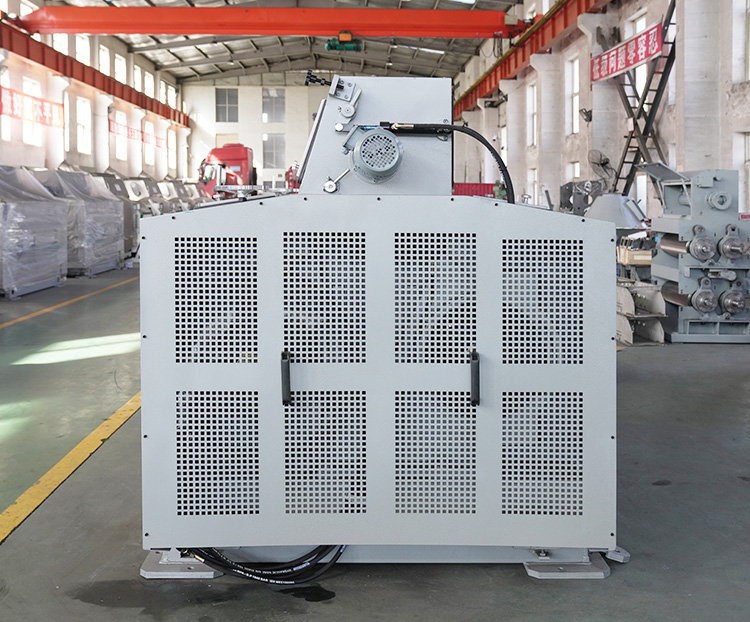

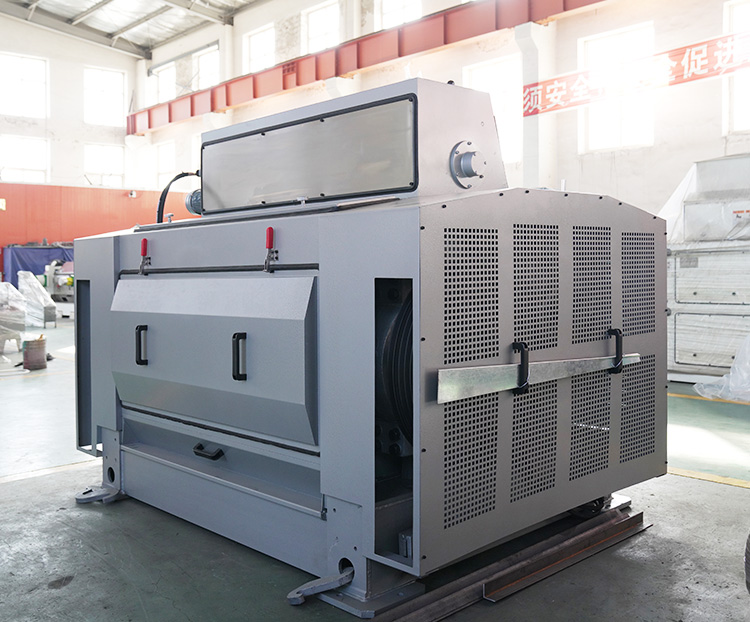

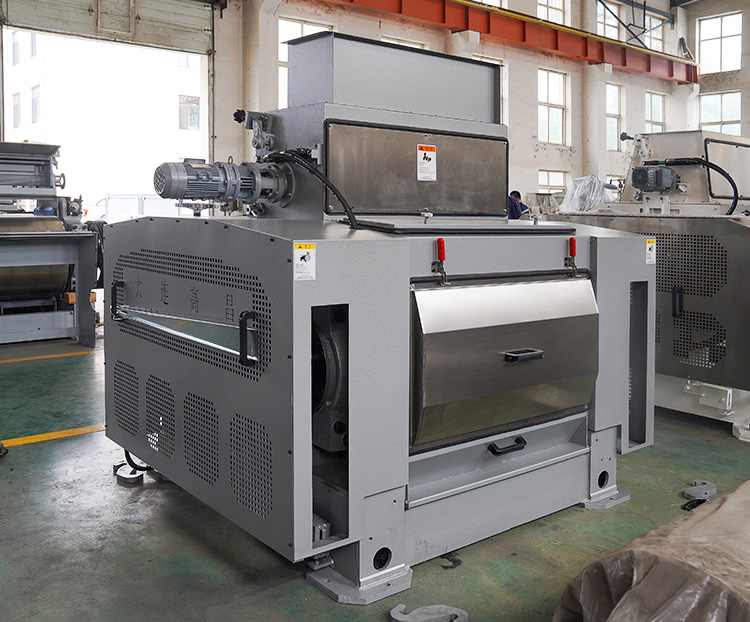

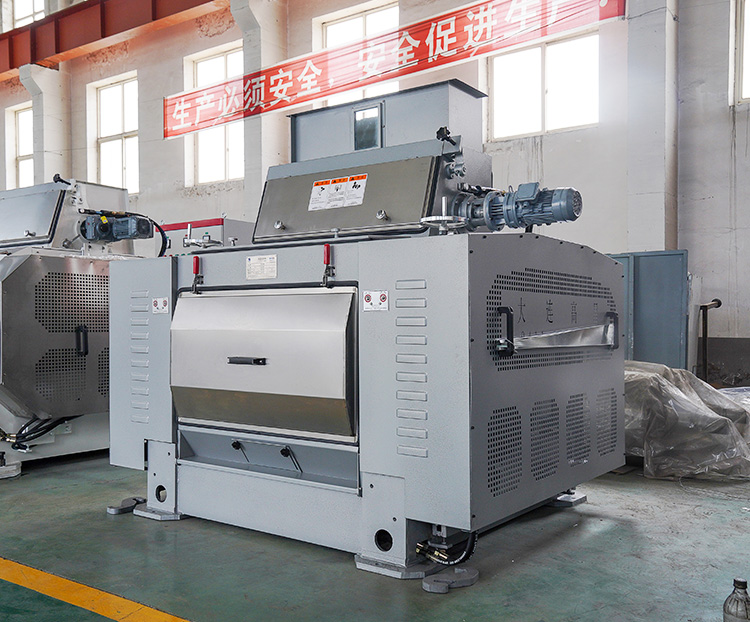

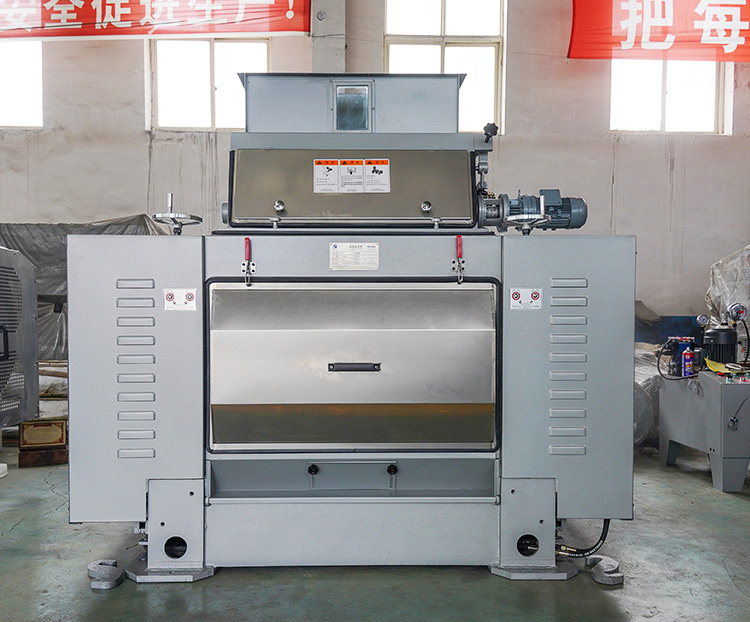

This kind of flaker is used for edible oil pretreatment . It can flatten the oilseeds into 0.25-0.35mm (adjustable)as your requirement .
● Whole closed structure.Both sides have a heat dissipation network. Square bearing base.Front and back door plate can be opened，easy to be cleaned.Both sides of bottom have material receiving port，easy to observe the effect of material.
● Roller Brand：CFHI roller blank. The high Ni Cr Mo alloy roll is poured by German centrifuge, the hard layer is uniform, the hardness is hs75 ± 3, and the chill depth is 30+/-5mm. The roller blank cast by German centrifuge of CFHI is tested by dynamic balance.
● Drive motor: Domestic famous brand.
● Housing:Protecting cover、 front、back、up and down door plate are made of carbon plate.
● Pulley : CPT brand
● Hydraulic system:PLC Hydraulic pump station. High pressure oil pipes are adopted as hydraulic pipes. Power：1.5kW
● Equipment base: Carbon steel welded base.
● Tight-roll function:Hydraulic tighten roller，adopts round bearing seat.
● Leak proof device:Leakage proof material by pinnacle baffle.
● Scraper system:Easy to clean up the materials attached to the roller.The blade can be removed and adjusted.
|
Model |
Capacity（T/D） |
Flake thickness(mm) |
Roller size(mm) |
Dimensions(mm) |
Weight(≈t) |
|
F8150H |
280-300 |
0.25-0.35 |
800*1500 |
2900*2500*1850 |
12 |
|
F8150 |
280-300 |
0.25-0.35 |
800*1500 |
2520*1800*1950 |
11.5 |
|
F8100 |
120-150 |
0.25-0.35 |
800*1000 |
2150*1650*1780 |
7.6 |
|
F6125 |
110-130 |
0.25-0.35 |
600*1250 |
2300*1500*1500 |
7.5 |
|
F6100 |
80-100 |
0.25-0.35 |
600*1000 |
2100*1500*1500 |
6 |
|
F6080 |
50-80 |
0.25-0.35 |
600*800 |
1900*1500*1500 |
5 |
