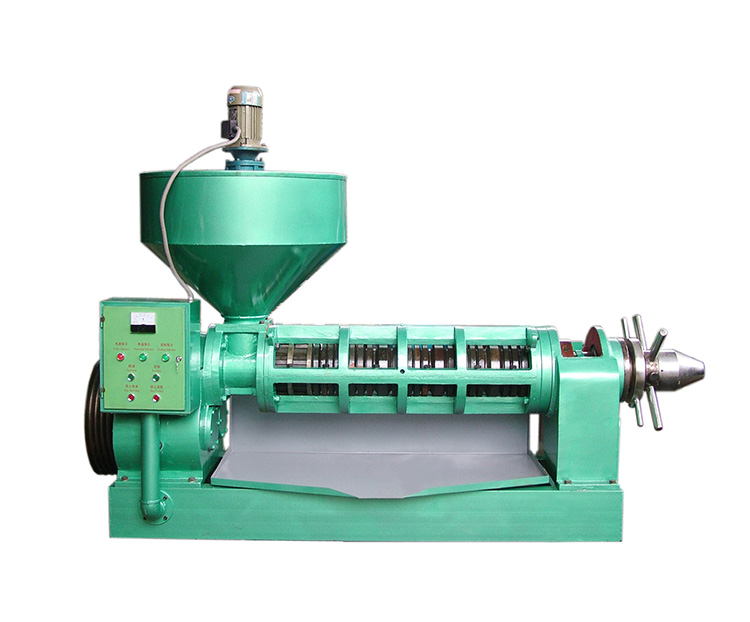

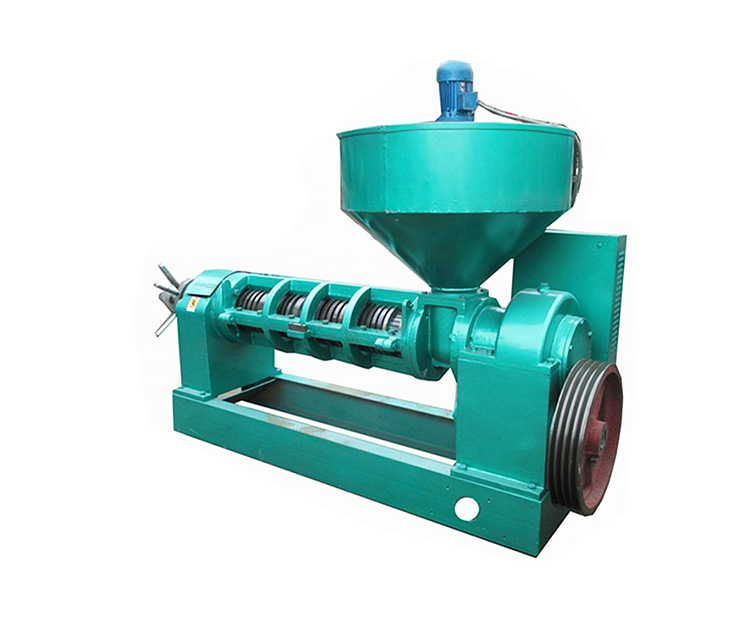

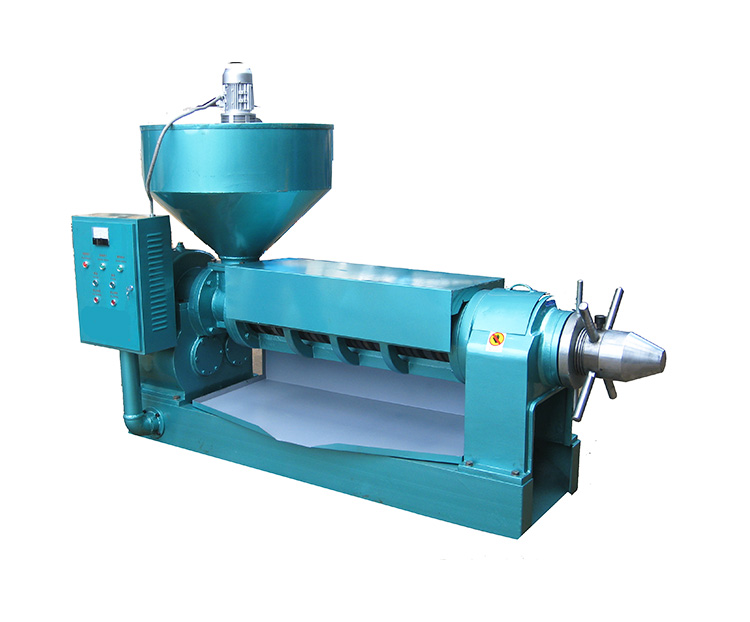

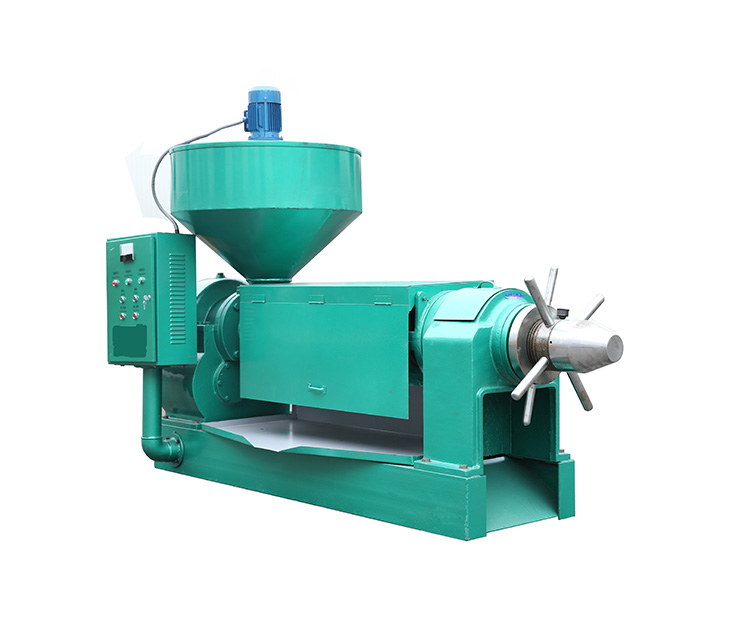

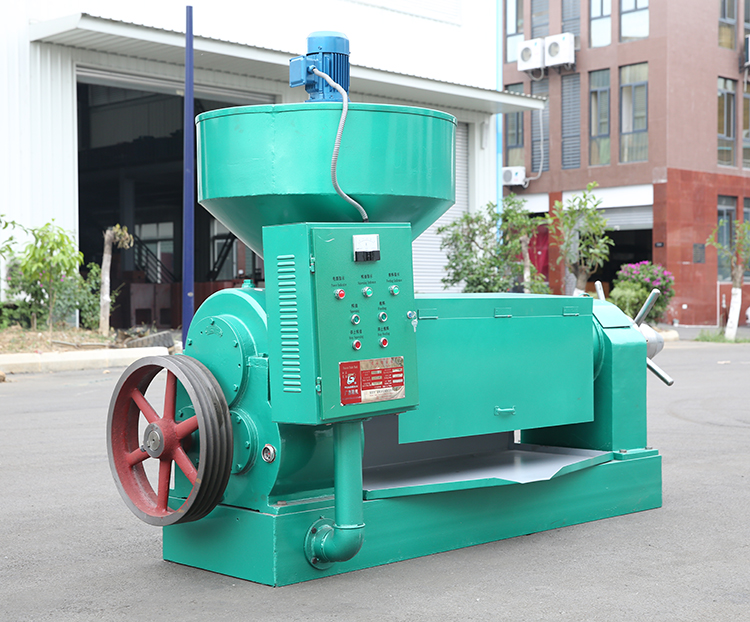

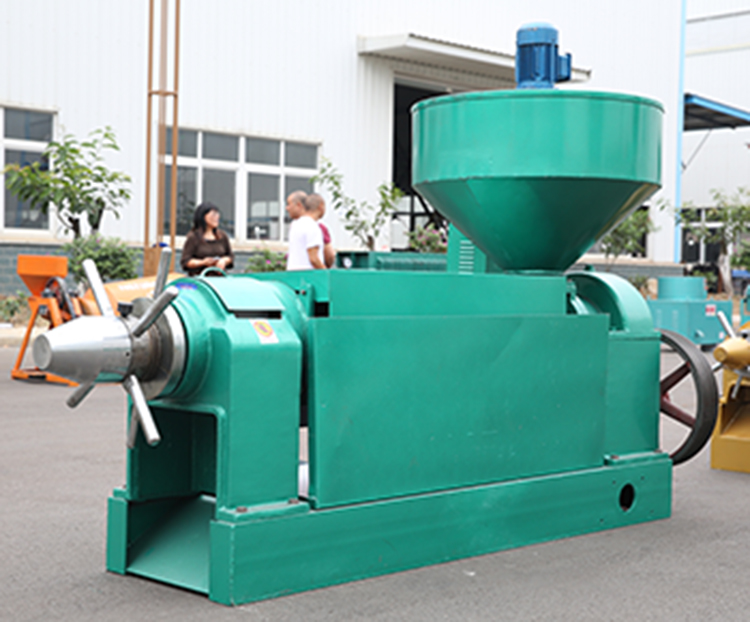

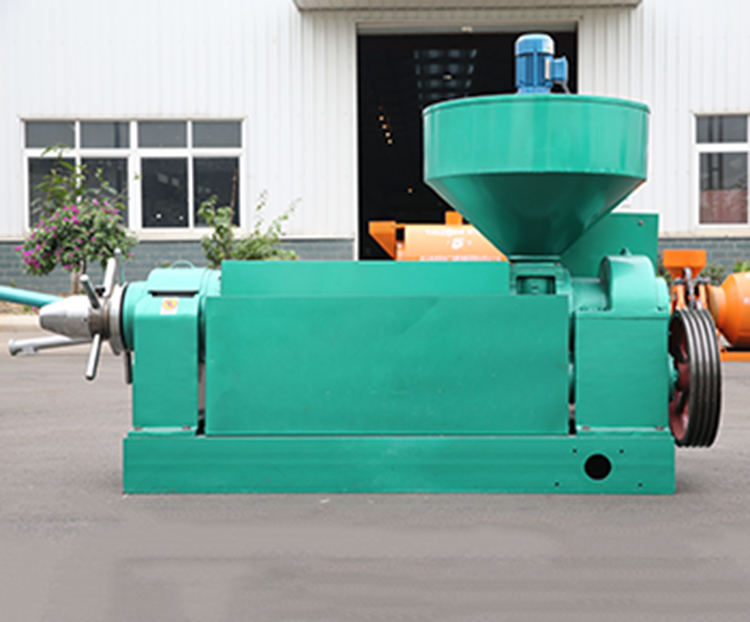

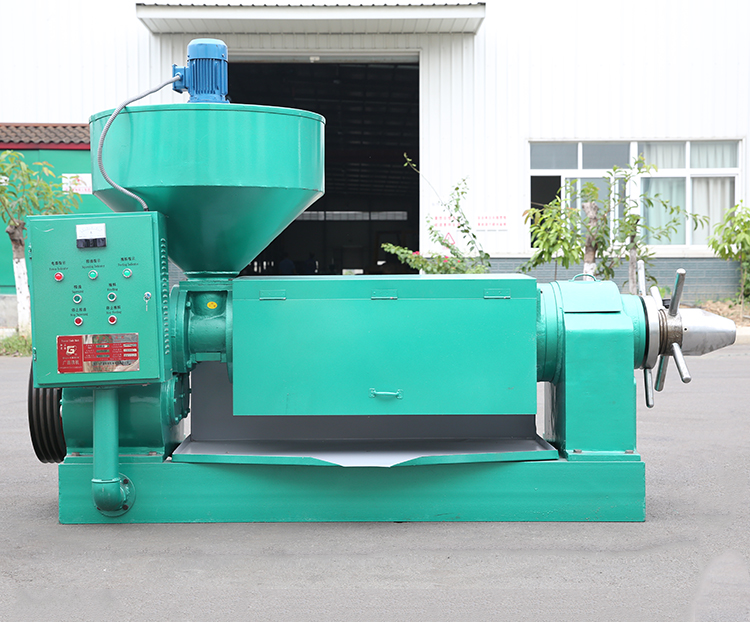

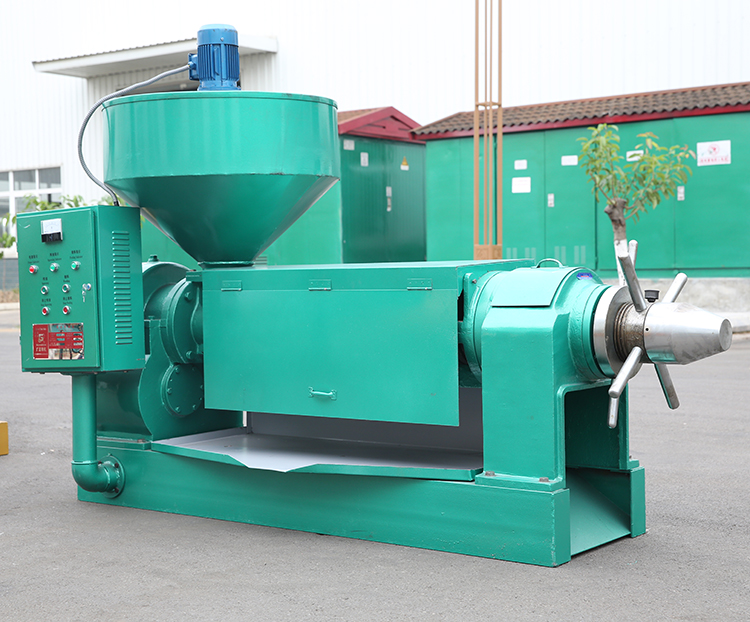

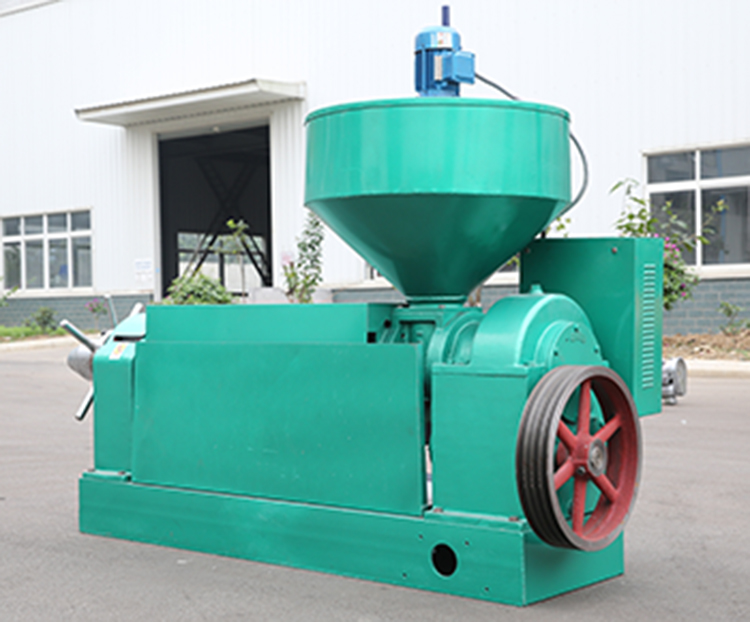

CZA168 produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
1.Over 30 years of experience in manufacturing screw oil presses.
2.Holding 7 technical patents for oil presses.
3.Full-scale inspection before shipment, with a quality pass rate of over 98%.
4.More than 300 skilled workers, 10% of whom are mechanical engineers and technical specialists.
5.Widely applied in daily-life scenarios, our products have been exported to more than 70 countries.
|

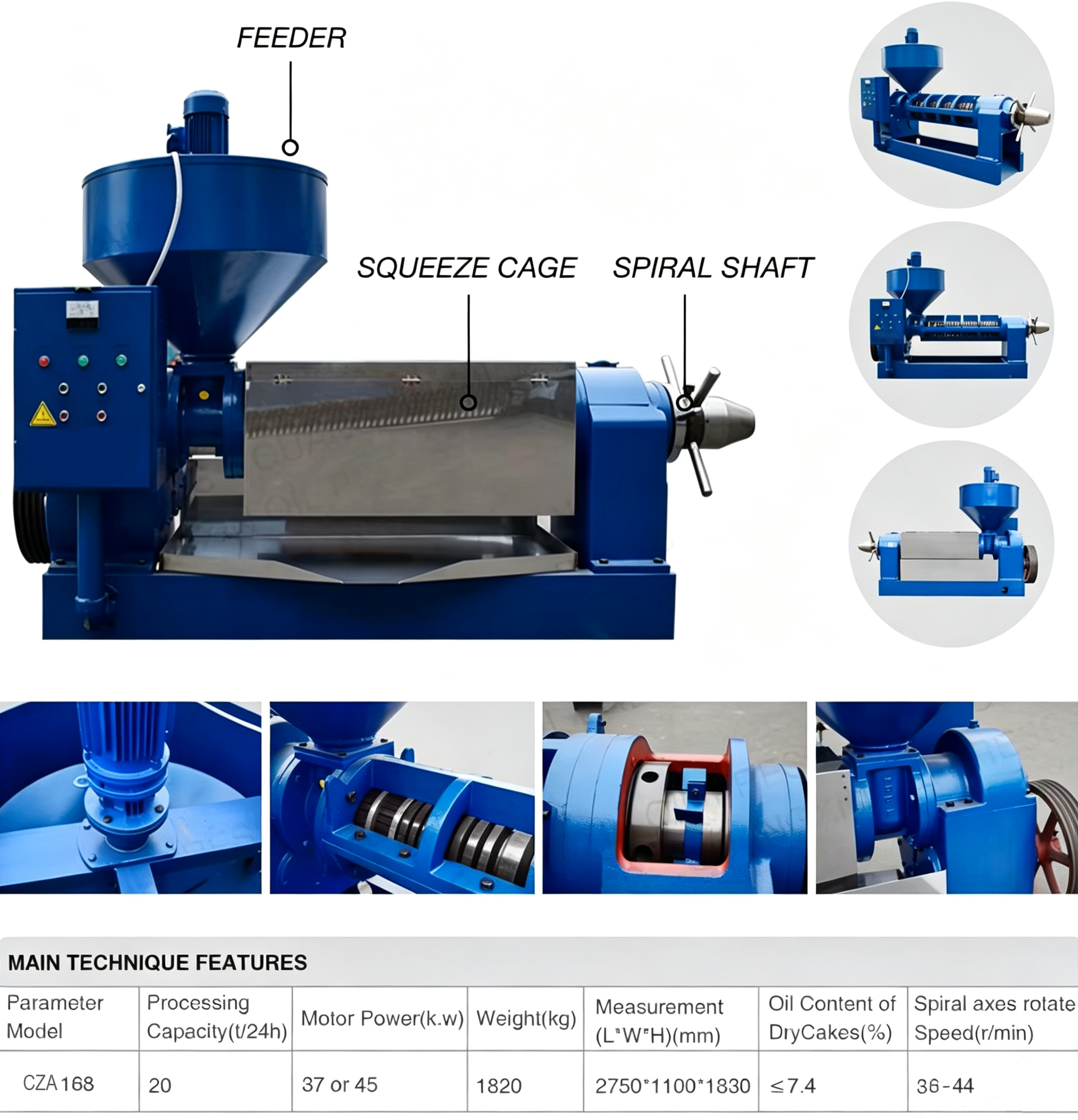

ITEM |
YZYX168B |
YZYX168C、 YZYX168 |
|
Revolving speed of spiral axis (r/min) |
32-38 |
|
|
Power required（kw） |
37-45（6 pole） |
|
|
Feeding power（kW） |
0.55 |
|
|
Measurement (mm) |
2500×1008×1726 |
2670×1008×1726 |
|
Weight (kg) |
1710 |
1800 |
Oil seeds
The performance parameters listed below refer to the indexes achievable under continuous-operation conditions with good-quality oil-bearing materials, complete and properly-configured auxiliary equipment, reasonable technological processes including cleaning, shelling (separation), flaking (crushing) and steaming-roasting, hot pressing method, and normal machine operation.
|
Oil Plants |
Processing Capacity |
Oil content of Dry cakes (%) |
Oil Yield Efficiency (t/24h) |
Electricity Consumption (kw.h/t) |
|
Rapeseed |
≥20 |
≤7.4 |
≥84 |
≤34 |
|
Cotton seeds |
≥20 |
≤6.3 |
≥80 |
≤54 |
|
Soybean |
≥17 |
≤6.2 |
≥69 |
≤51 |
|
Peanut |
≥20 |
≤6.3 |
≤92.5 |
≤34 |
① It is normal that sometimes the actual results may be a little different from those in the index, for the oil plant’s type, quality and original content may be different in different areas.
② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.
