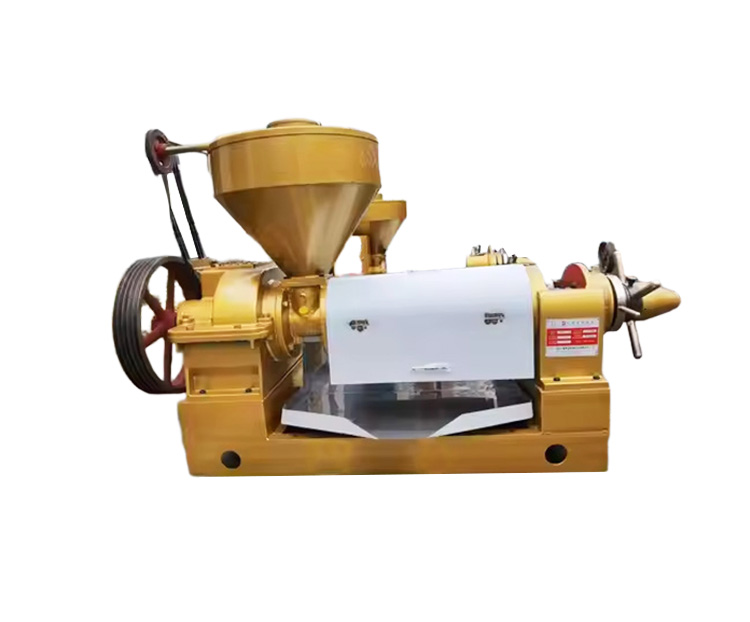

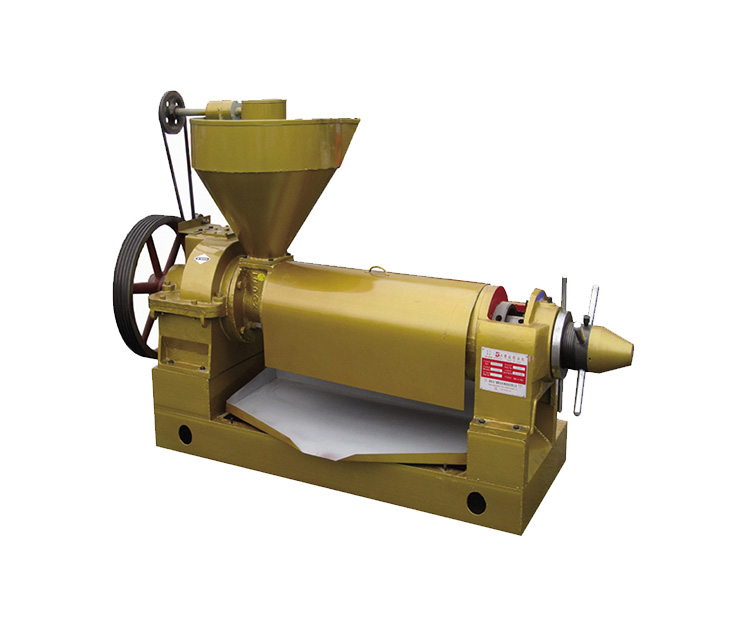

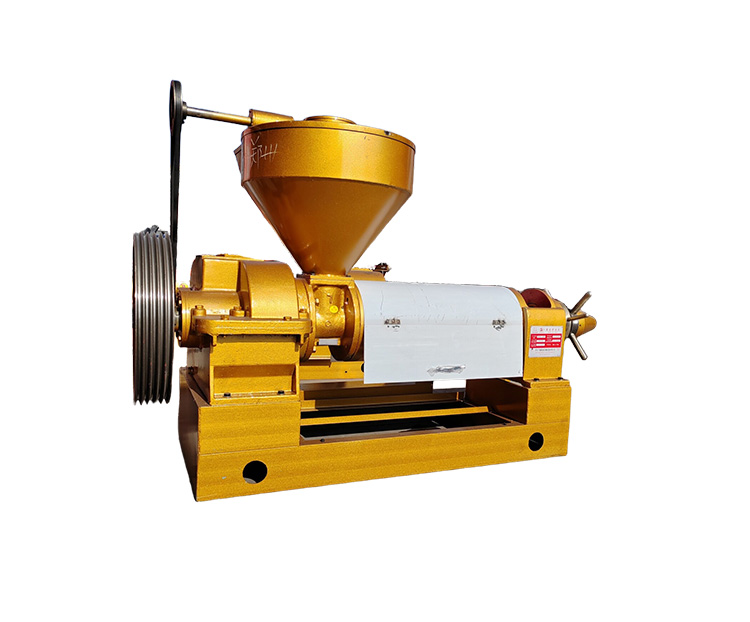

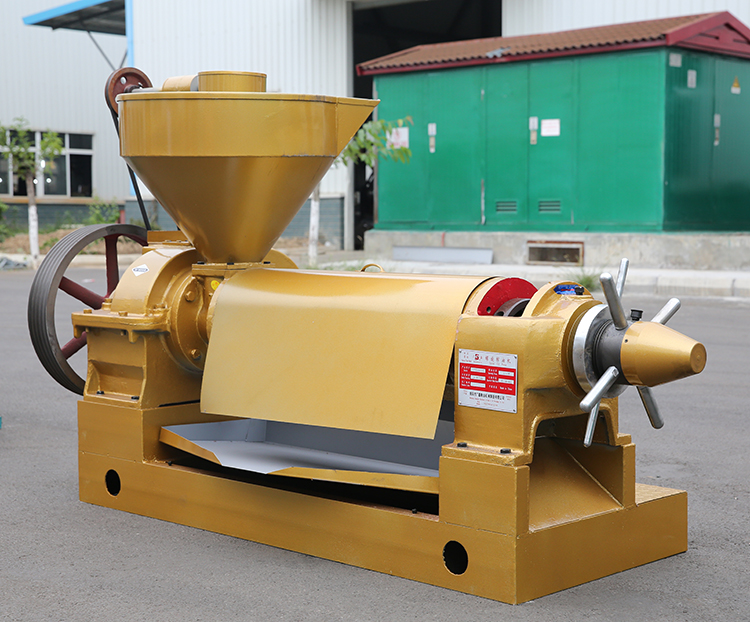

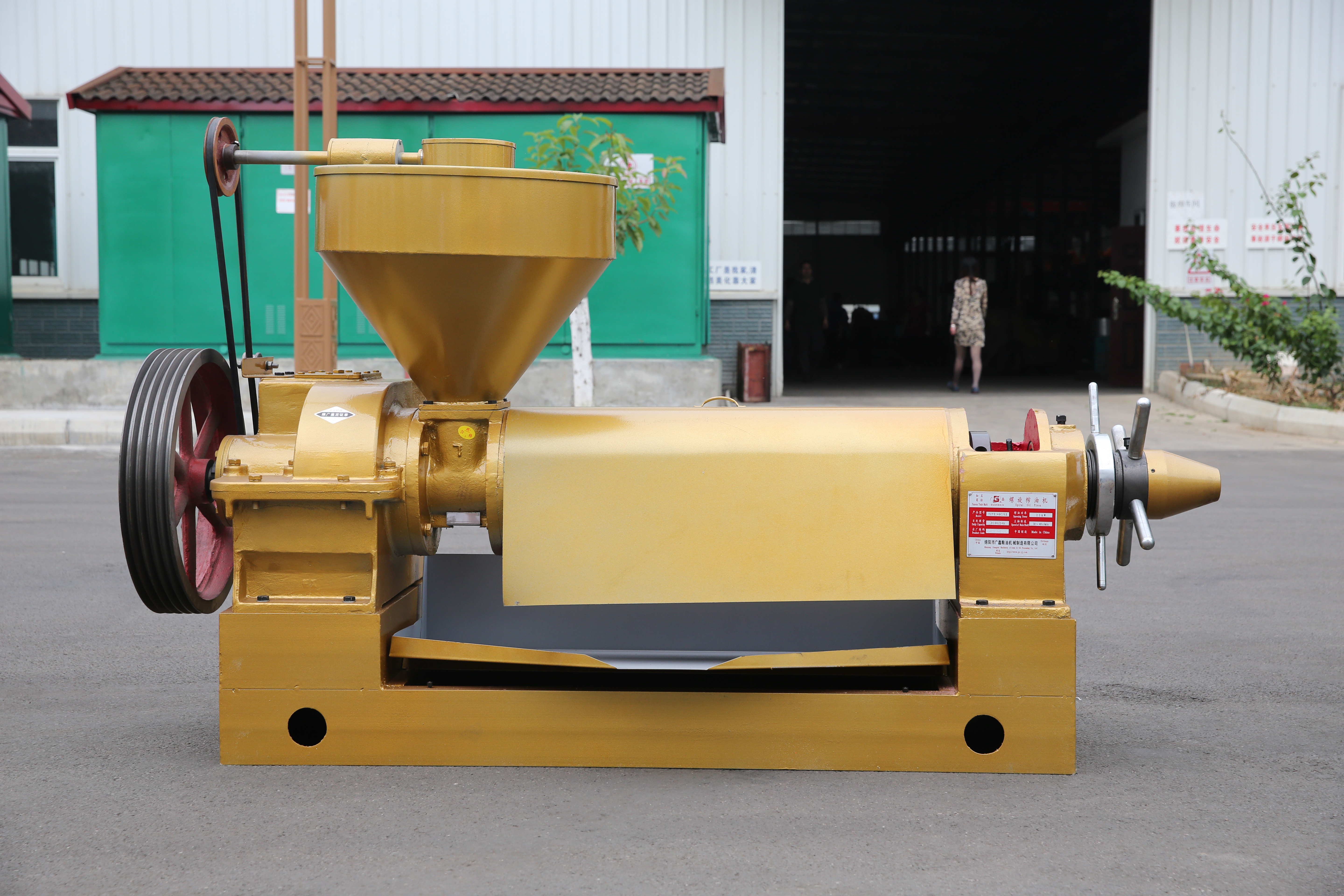

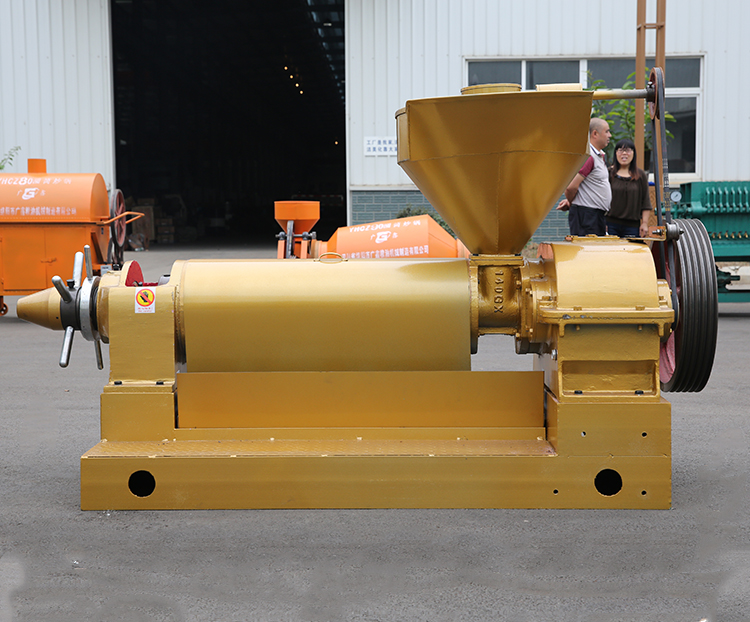

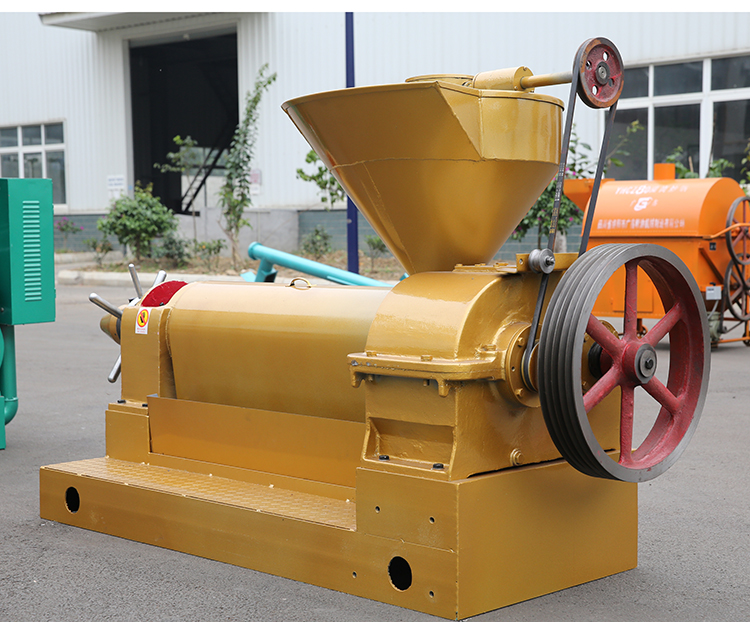

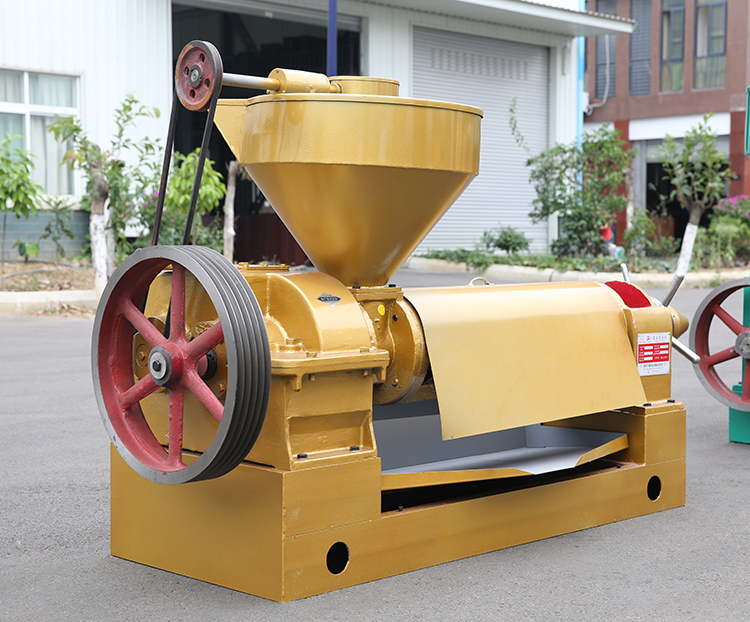

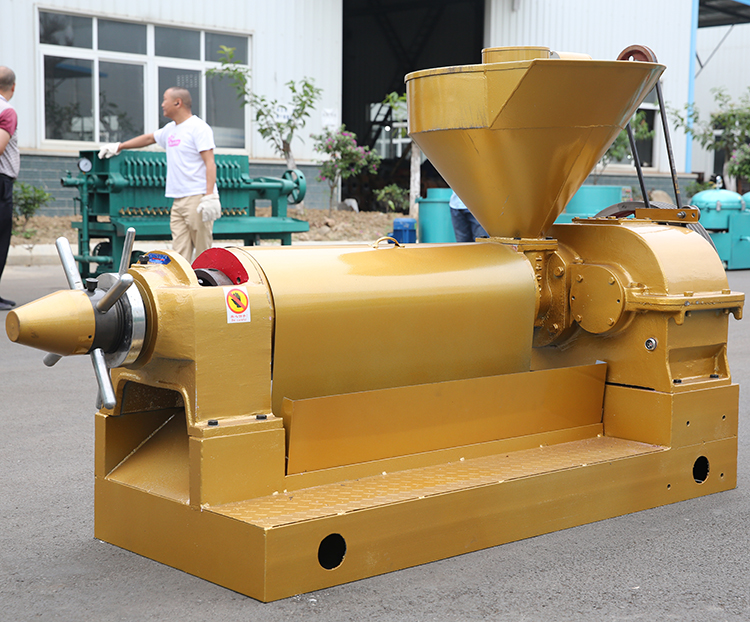

Our series YZYX140 spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characters of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
Product Highlights
2. Fully‑reinforced mechanical structure for extra‑long service life . The machine is fitted with a heavy‑duty cast‑iron gearbox and high‑precision bevel gear drive mechanism. The gearbox housing is widened and thickened as a whole, and gear modules are professionally optimized, which greatly improves the overall load‑bearing capacity, torsional resistance and impact resistance of the transmission system. Compared with ordinary light‑duty gearboxes, this structure withstands higher working loads and adapts to long‑term high‑intensity industrial production scenarios.
3. Broad raw‑material compatibility with both hot‑press and cold‑press modes. It efficiently processes mainstream bulk oilseeds including peanut, rapeseed, soybean, sunflower seed, sesame, cottonseed and other common edible‑oil raw materials. One single machine meets customers’ diverse production demands, eliminating the need to purchase multiple specialized machines for different oil‑bearing materials.
4. Low energy consumption and high added value, delivering superior cost‑performance and steady profits. Model 140CJGX oil press adopts a national‑standard YE3‑series 22‑kW 4‑pole high‑efficiency energy‑saving motor complying with China Grade‑3 energy efficiency standard. It delivers excellent dregs‑discharging performance. After sufficient pressing, oil cakes are well‑formed with uniform texture and extremely low residual oil rate, and can be directly sold as high‑quality raw material for animal feed
|

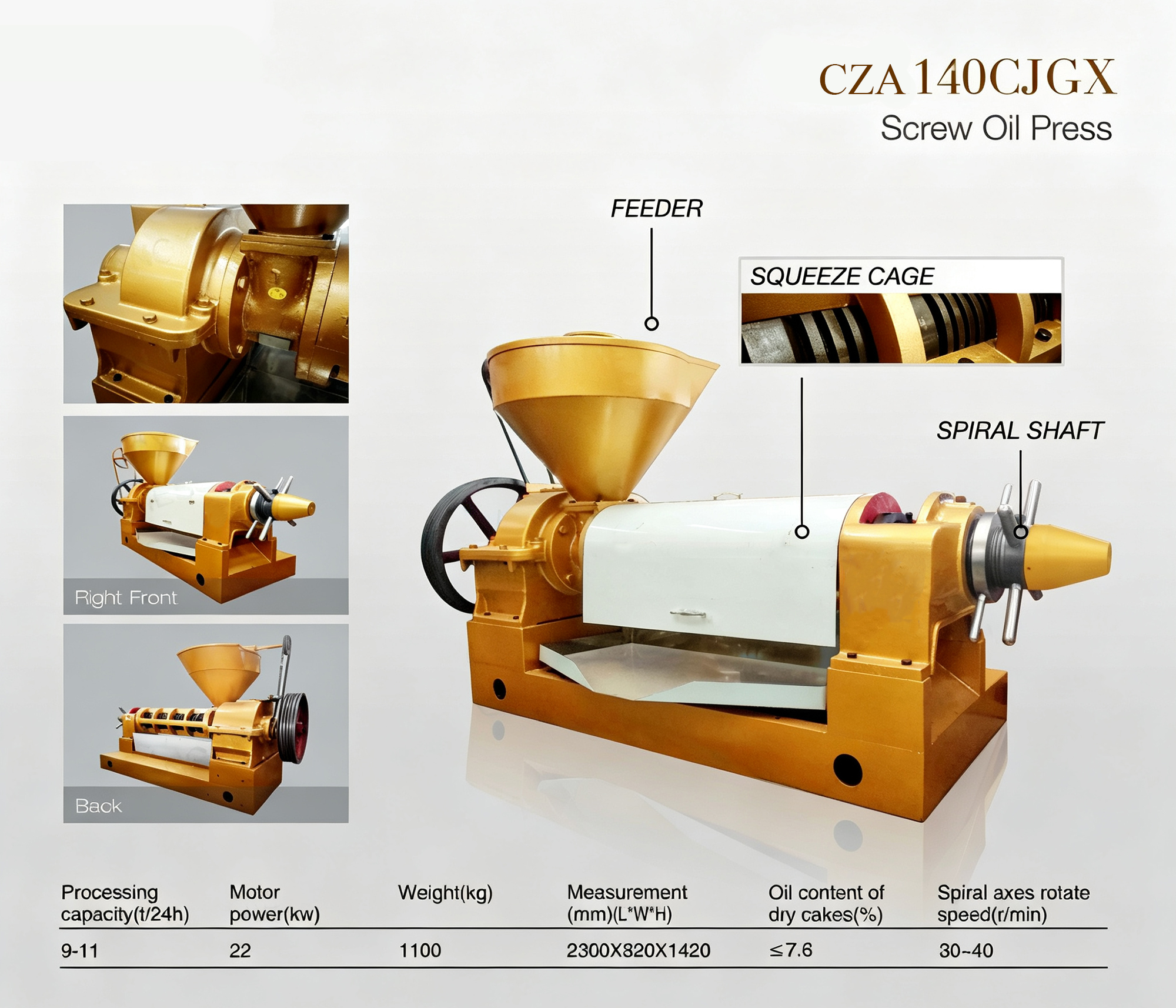

Item |
YZYX140(-8) |
YZYX140CJ |
YZYX140CJGX |
|
Revolving speed of spiral axis (r/min) |
30-40 |
||
|
Power required（kw） |
18.5（Y180M-4）or 22（Y180L-4） |
||
|
Measurement (mm) |
2010×690×1430 |
2100×690×1400 |
2300×820×1370 |
|
Weight (kg) |
806 |
884 |
1100 |
Oil seeds
|
Oil Plants |
Processing Capacity (t/24h) |
Oil content of Dry cakes (%) |
Oil yield efficiency (%) |
Electric power consumption (kw.h/t) |
|
Rapeseed |
9~11 |
≤7.6 |
≥82 |
≤34 |
|
Cotton seeds |
9~11 |
≤6.8 |
≥77 |
≤54 |
|
Soybean |
8~10 |
≤6.5 |
≥67 |
≤51 |
|
Peanut |
9~11 |
≤6.5 |
≥92.3 |
≤34 |
① It is normal that sometimes the actual results may be a little different from those in the index because the oil plant’s type, quality and original content may be different in different areas.
② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.
