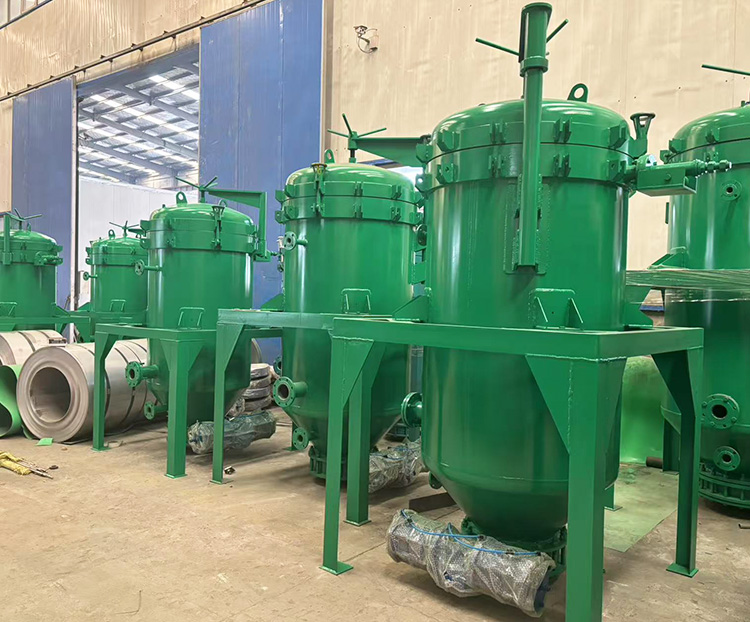

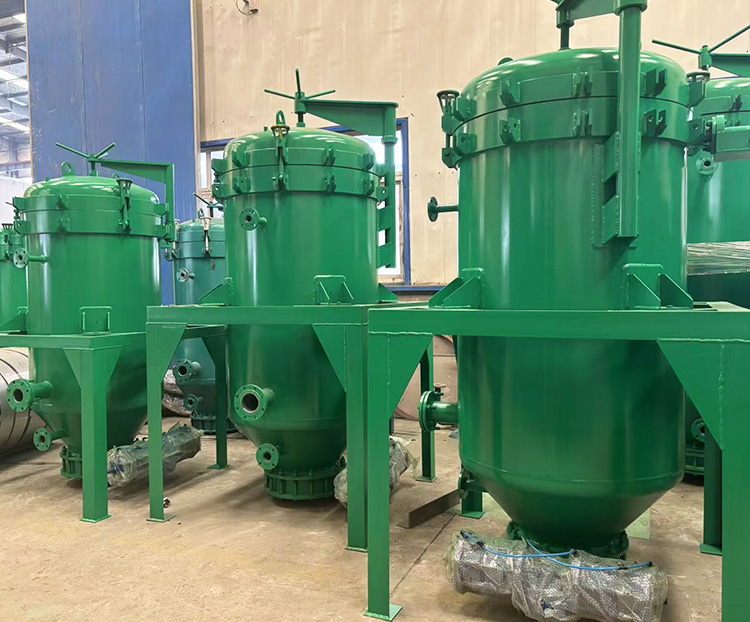

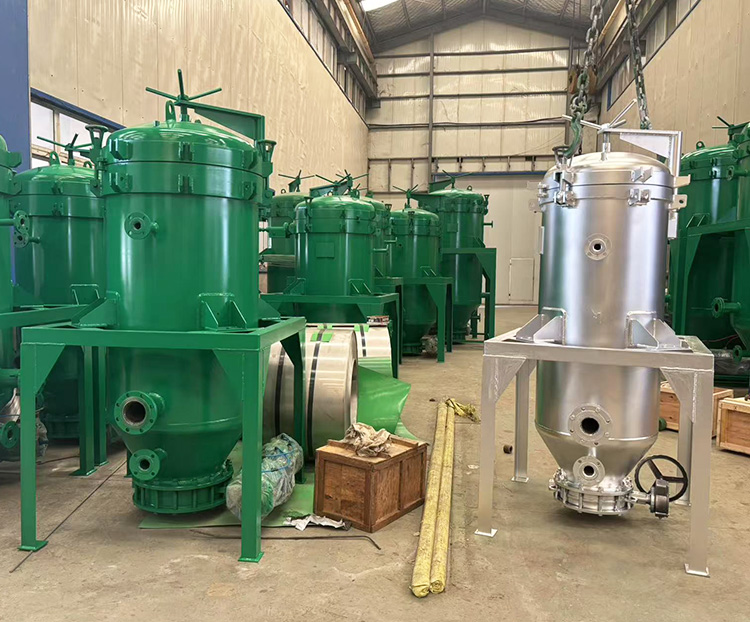

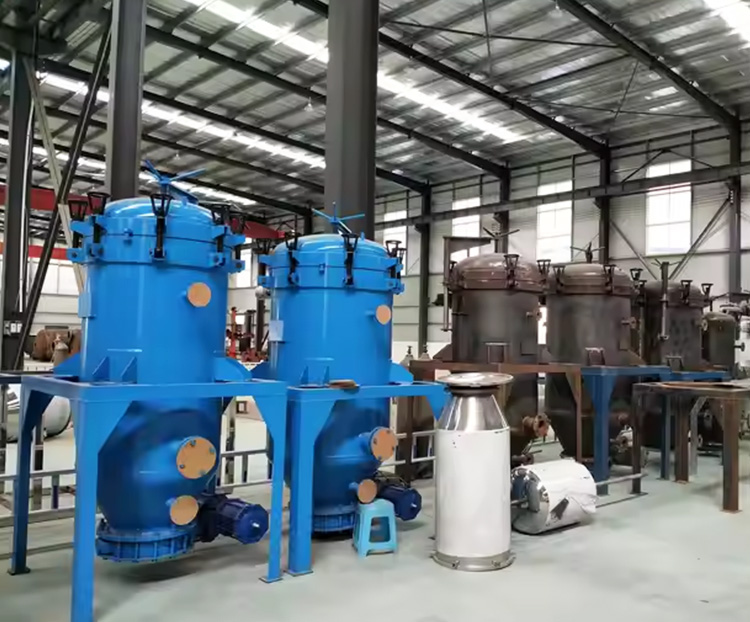

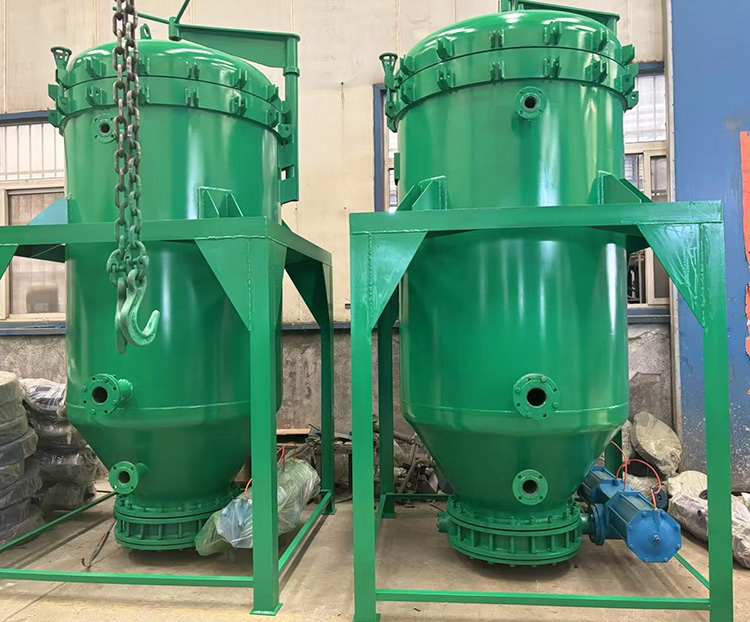

Vertical Leaf Oil Filter

The products are mainly used for fluid precision filtration for oil, paint, pigment, food, beverage, pharmaceutical, grease, chemical and other industries fluid, also for filtration aid and decolourant.

Send Message Inquiry Now

Main Features:

● Unique design of filter screen, no need for filter paper.

● No pollution and no oil residue loss in the whole enclosed filtration operation.

● Automatic vibration residue falling can reduce wroking intensity and achieve continuous operation.

● Automatic value discharge residue.

● No need for filter plate cleaning for second filteration after residue discharging.

Technical Specification:

Model	Filtration area ㎡	Filter cake volume L	Treatment Capacity			Work Pressure Mpa		Work temperature ℃	Machine volume L
Model	Filtration area ㎡	Filter cake volume L	Oil	Resin	Beverage	Rated pressure	Max pressure	Work temperature ℃	Machine volume L
LYL-2	2	30	0.4-0.6	1-1.5	0.1-0.4	0.1-0.4	0.5	≤150	120
LYL-4	4	60	0.5-1.2	2-3	2-5				250
LYL-7	7	105	1-1.8	3-6	4-7				420
LYL-10	10	150	1.6-3	5-8	6-9				800
LYL-12	12	240	2-4	6-9	8-11				1000
LYL-15	15	300	3-5	7-12	10-13				1300
LYL-20	20	400	4-6	9-15	12-17				1680
LYL-25	25	500	5-7	12-19	16-21				1900
LYL-30	30	600	6-8	14-23	19-25				2300
LYL-36	36	720	7-9	16-27	23-31				2650
LYL-40	40	800	8-11	21-34	30-38				2900
LYL-45	45	900	9-13	24-34	36-44				3200
LYL-52	52	1040	10-15	27-45	42-51				3800
LYL-60	60	1200	11-17	30-52	48-60				4500
LYL-70	70	1400	12-19	36-60	56-68				5800
LYL-80	80	1600	13-21	40-68	64-78				7200
