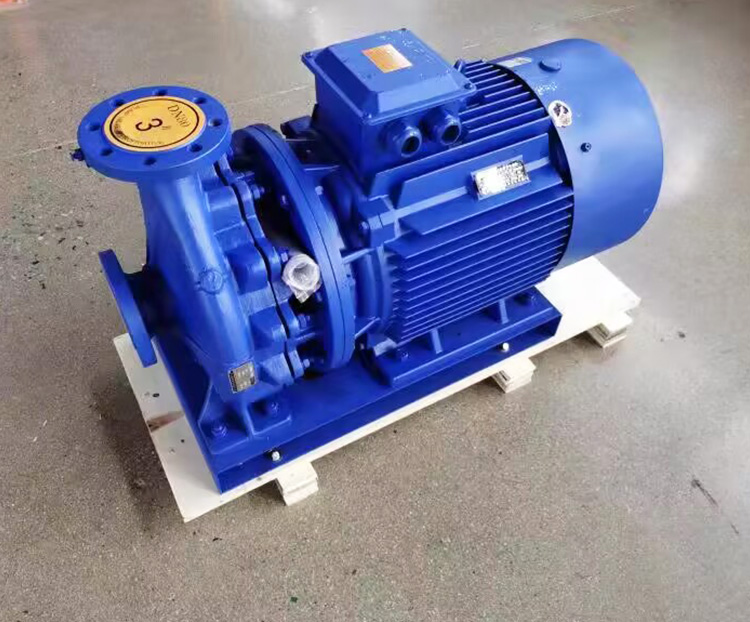

Horizontal centrifugal pump is the ideal,new generation,high efficiency,energy saved product,which is according to the performance parameter of the 1S,1R type centrifugal pump and 1SO standard,adopt excellent design of domestic hydraulic module.
● Compact structure ,with motor,beautiful outline,take small place,about 30% reduce compare to common horizontal type.lt can working in outdoor with IP54 outdoor motor.
● Stably operated,low noise.direct coupling.,the impeller has balance performance with non-vibration.low noise,which is relong the use life of the shaft bearing,and improve the working environment.
● Seal adopt good mechanism seal,dynamic and static loop are made of hard alloy ,anti-grind,non-lea- kage,long used.
● Adopt advanced hydraulic module with high efficiency and good performance.
● Particular structure.the pump bottom has a water discharge hole,and take pressure hole both in inlet and outlet flange,which is confirm good performance and maintenance.
● Level inlet,vertical outlet,that convenience to install the pipe.
|
No |
Model |
Volume of Flow(m³/h) |
Lift H (m) |
Power (KW) |
Rotation speed (r/min) |
|
1 |
RJB25-25 |
4 |
32 |
1.5 |
2900 |
|
2 |
RJB40-40 |
6 |
32 |
2.2 |
2900 |
|
3 |
RJB50-50 |
12.5 |
32 |
3 |
2900 |
|
4 |
RJB65-65 |
25 |
32 |
4 |
2900 |
|
5 |
RJB80-65 |
30 |
32 |
5.5 |
2900 |
|
6 |
RJB80-80 |
50 |
32 |
7.5 |
2900 |
|
7 |
RJB100-100 |
100 |
32 |
15 |
2900 |
|
8 |
RJB125-125 |
160 |
32 |
22 |
2900 |
