This machine is suitable for pressing high oil plant oils such as peanut kernels, cottonseed, rapeseed, sunflower seeds, tung seeds, castor seeds, rice bran, corn germ, etc. At the same time, it can also be used to press and make oil from animal oils such as chicken and fish.
2. High Efficiency: Extracts 5‑8% more oil compared with traditional methods.
3. Multi‑oil Function: Suitable for processing various seeds and nuts, including peanuts, soybeans, rapeseeds and sesame seeds.
4. Compact Design: Compact footprint for indoor use, ideal for small‑scale production.
5. Automatic Operation: Fully‑automatic running minimizes manual intervention and saves time and labor.
|
Type |
Processing Capacity |
Residual Oil Rate of Cake |
Power Matching |
Overall Dimension |
Weight |
|
CZAZX252 |
20~25T/D |
5~8% |
Y315M-6-45KW |
5000*2580*2700 |
8000Kg |
Oil seeds

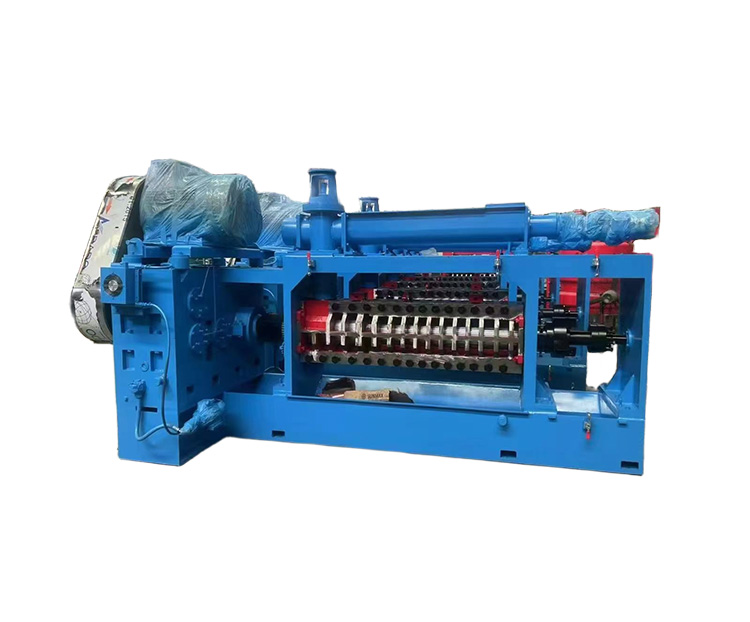

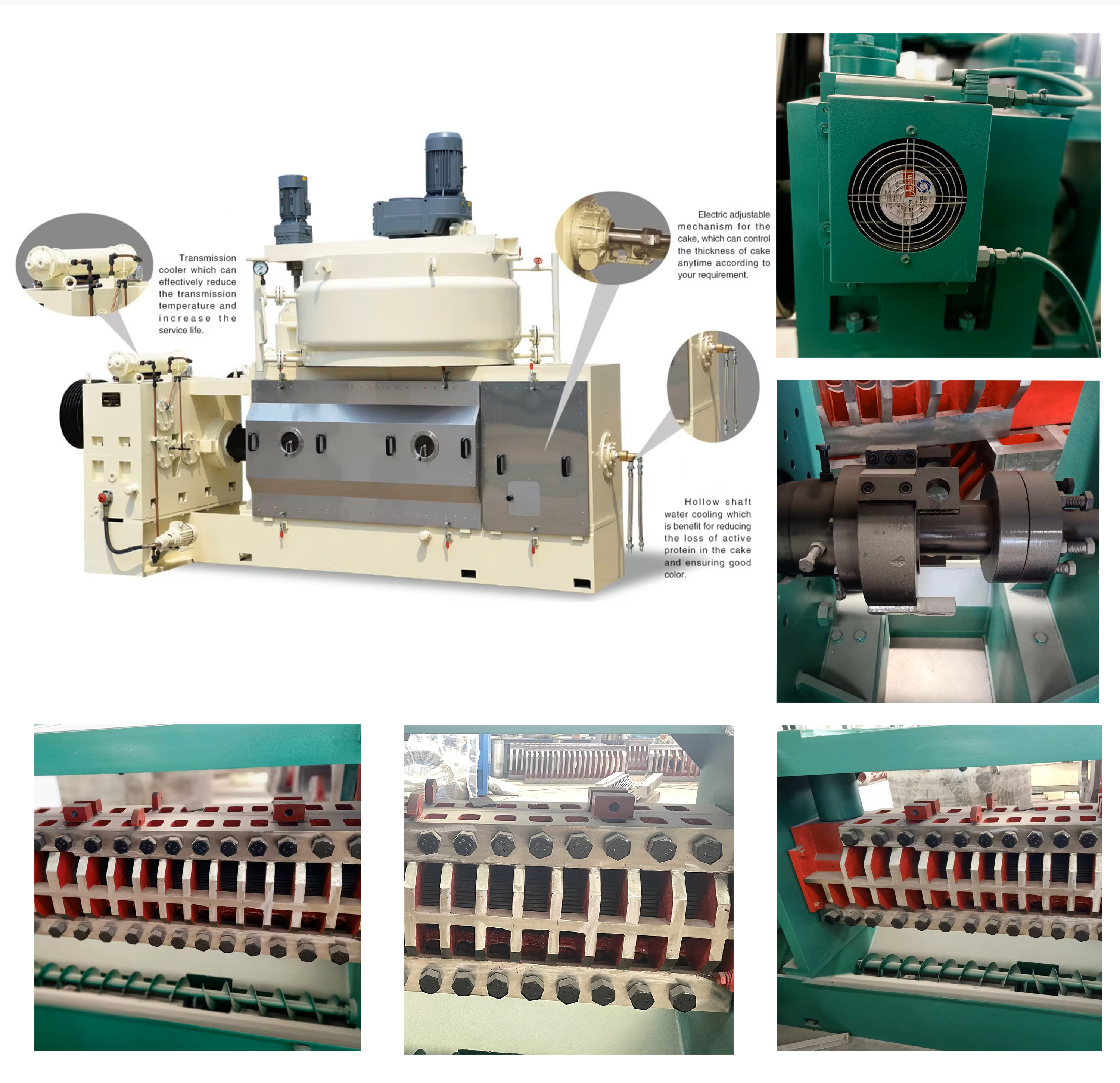

● Bar cage. The spindle is designed as a hollow shaft, which cools the pressing chamber to reduce the temperature generated by high pressure, reduce protein loss, and improve the color of the cake. The squeezing cage which is convenient for assembly, maintenance, and reduces labor intensity.
● Electric cake adjustment mechanism, which can control the thickness of cakes according to needs
|
Raw Material |
Output (T/D) |
Residual Oil in Cake |
Power |
|
Rapeseed |
20-25 |
5-8% |
45 KW |
|
Soybean |
20-25 |
5-8% |
45 KW |
|
Peanut |
22-25 |
5-8% |
30 KW |
|
Corn Germ |
18-20 |
8-10% |
45 KW |
