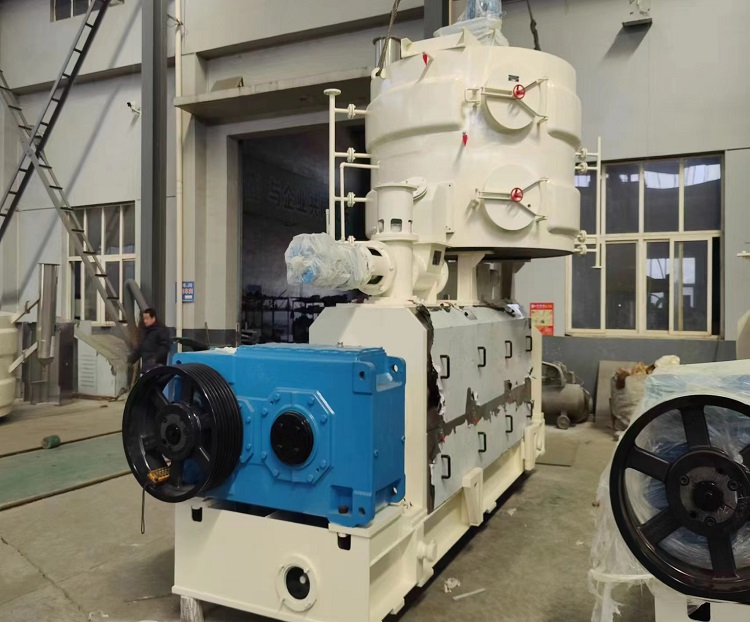

ZX319 screw oil press is a large low-temperature oil press independently developed by our company for the press process, which is suitable for the press of peanut kernel, sunflower seed, rapeseed, cottonseed, soybean and other plant oils. The gearbox is a standardized reducer, the user can specify domestic and foreign reducer brand products, design an independent thrust bearing room, so that the reducer is not subject to axial force, smooth operation, low maintenance rate. The cooling device of the main shaft is designed to reduce the surface temperature of the press shaft, reduce the temperature of the cake, and reduce the loss of protein in the cake. The machine is made of high quality materials and modular processing technology, the fuselage is solid, the structure is reasonable, the appearance is beautiful, the operation is convenient, the operation is stable, and the technical indicators are superior.
● European design, bigger & stronger gearbox.
● Large processing capacity, small floor space, low power consumption, less operation management and maintenance work;
● The screw press is designed with multi-stage pressing, and the pressure of the pressing chamber is large; the pressing cage is long, so that the material is fully pressed;
● The structure of the pressed cake is in the shape of a block, and less dust is conducive to the penetration of the solvent;
● The oil content of the pressed cake is low, which is suitable for solvent leaching or cake packing;
● Special physical structure is adopted between the screw press and the screw press, and the screw press is easy to disassemble.
|
Raw material |
Output(T/D) |
Cake residual oil |
Power |
|
Rapeseed |
80-100 |
7-9% |
110KW |
|
Cottonseed |
90-110 |
7-8% |
110KW |
|
Peanut |
90-110 |
7-8% |
110KW |
|
Soybean |
80-100 |
7-8% |
110KW |
|
Sunflower seeds |
80-180 |
8-10% |
110KW |
|
Animal powder |
80-90 |
7-9% |
110KW |
