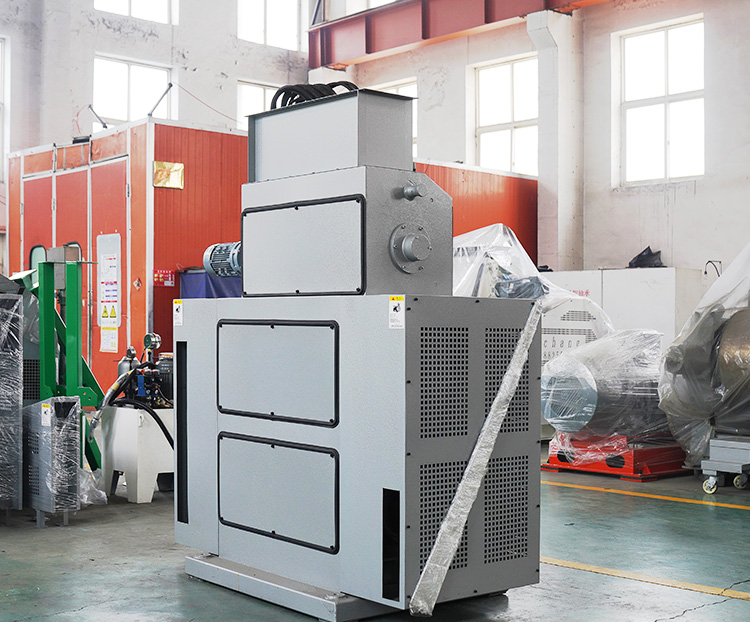

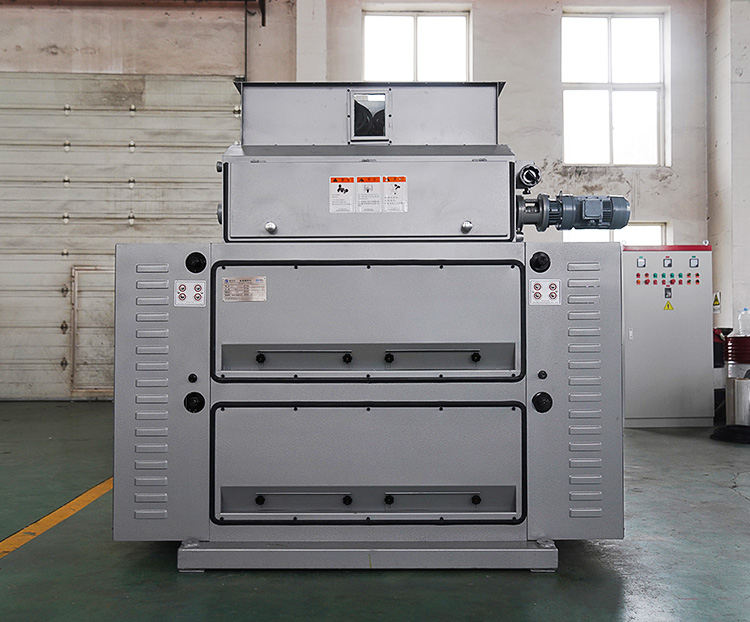

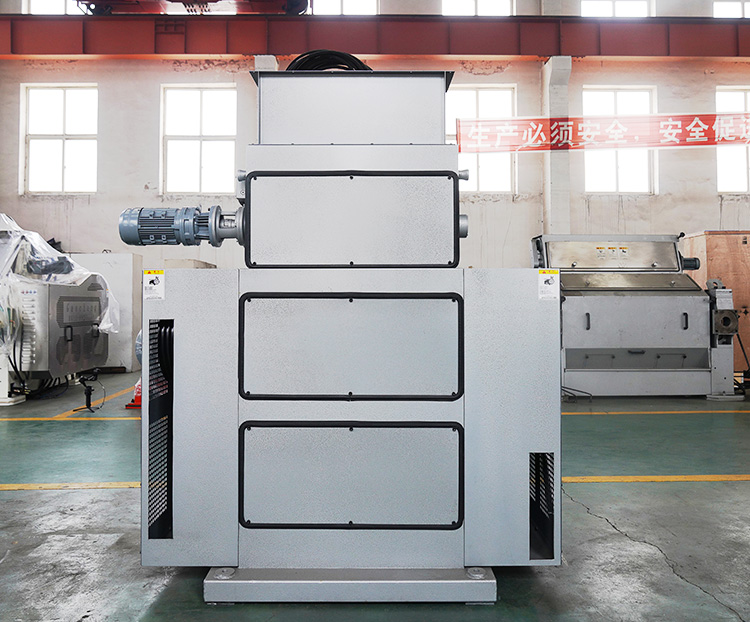

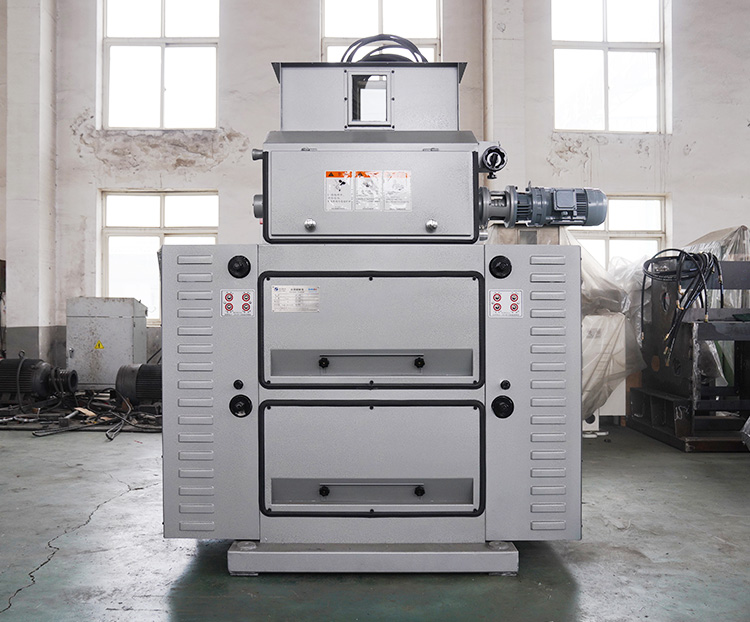

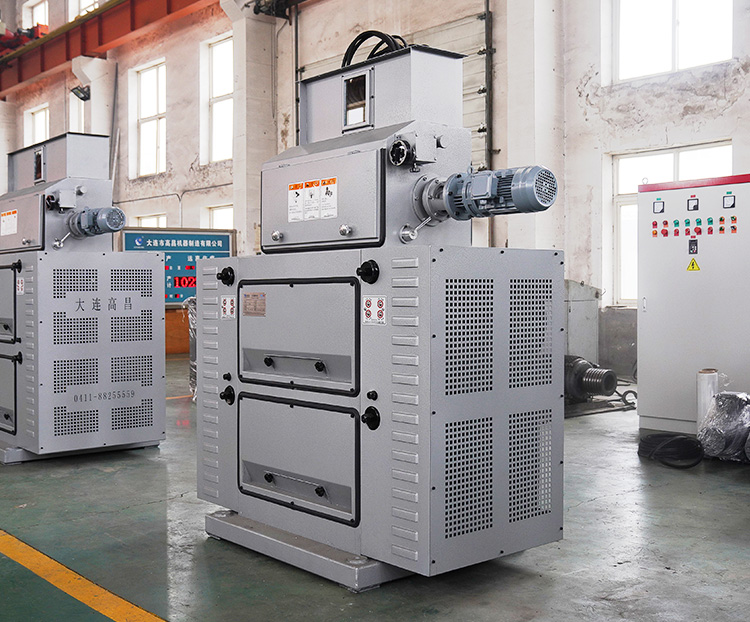

Sheller

This kind of crusher is used for edible oil pretreatment . It can cracked oilseeds into 2/4/6/8 particles as your requirement .

Sheller
Sheller
Sheller
Sheller

Main Features:

● Whole closed structure.Both sides have a heat dissipation network. Front and back door plates can be opened,easy to be cleaned.Both sides of bottom have a material receiving port,easy to observe the effect of material.

● Brand:The Ni Cr Mo alloy roll is poured by centrifuge, the hard layer is uniform, the hardness is hs69± 3, and the chill depth is 25+/-5mm. The roller is tested by dynamic balance.

● Protecting cover、 front、back、up and down door plate are made of carbon plate.

● Equipment base: carbon steel welded base.

● Tight-roll function:Spring-tightened roller adopts round bearing seat.

● Leak proof device:Leakage proof material by pinnacle baffle.

● Pulley : CPT brand

● Bearing: ZWZ brand

● Driven motors: Famous brand of domestic

Technical Specification:

Item

Unit

Parameter

Model

-

C4150

Capacity

T/24H

450-500

Raw material



soybean,peanuts,rapseeds etc.

Roller size

MM

400*1500

Chill depth

MM

25+/-5

Chill hardness

HS

69+/-3

Crushing size (adjustable)



1/2-1/8

Roller speed

RPM

510/340

Total motor power

KW

44.55

Drive motor power

KW

44

Reducer power

KW

0.55

Approach weight

TON

7.5

Overall dimension(length× width× height)

MM

2700*1250*1950mm
